Valve Train Components - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

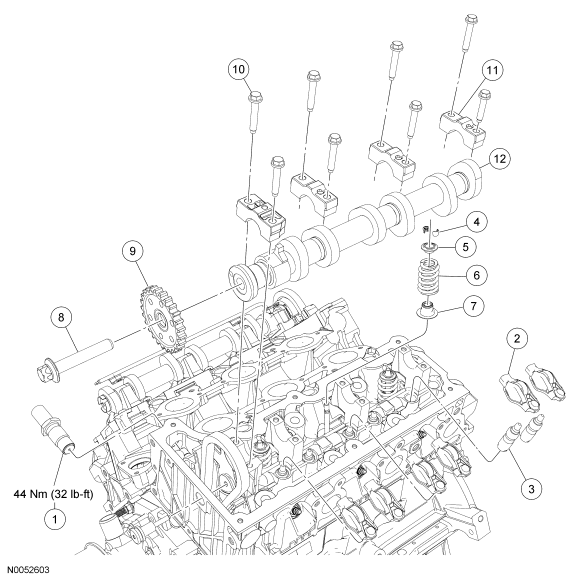

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
6K254 |
RH hydraulic chain tensioner |
| 2 |
6529 |
Camshaft roller follower (6 required) |
| 3 |
6500 |
Hydraulic lash adjuster |
| 4 |
6518 |
Valve spring retainer key (12 required) |
| 5 |
6A536 |
Valve spring retainer (6 required) |
| 6 |
6513 |
Valve spring (6 required) |
| 7 |
6571 |
Valve seal (6 required) |
| 8 |
6M276 |
RH camshaft sprocket bolt |
| 9 |
6256 |
RH camshaft sprocket |
| 10 |
W702341 |
Camshaft bearing cap bolt (8 required) |
| 11 |
6A528 |
Camshaft bearing cap (4 required) |
| 12 |
6250 |
RH camshaft |

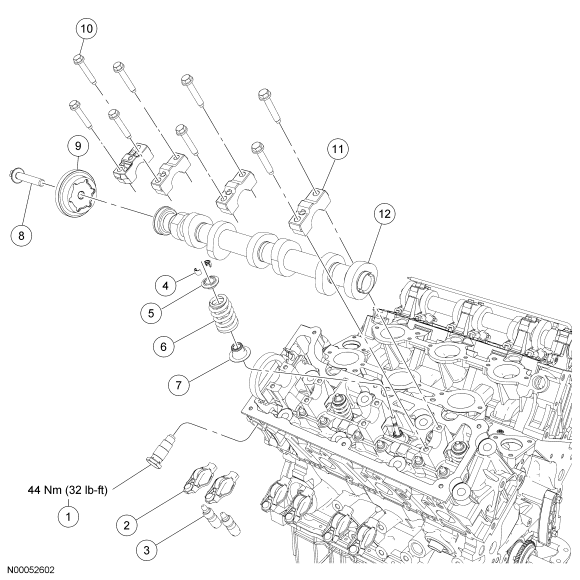

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
6K254 |
LH hydraulic chain tensioner |
| 2 |
6529 |
Camshaft roller follower (6 required) |
| 3 |
6500 |
Hydraulic lash adjuster |
| 4 |
6518 |
Valve spring retainer key (12 required) |
| 5 |
6A536 |
Valve spring retainer (6 required) |
| 6 |
6513 |
Valve spring (6 required) |
| 7 |
6571 |
Valve seal (6 required) |
| 8 |
6M276 |
LH camshaft sprocket bolt |
| 9 |
6M267 |
LH camshaft sprocket |
| 10 |
W702341 |
Camshaft bearing cap bolt (8 required) |
| 11 |
6A258 |
Camshaft bearing cap (4 required) |
| 12 |
6A274 |
LH camshaft |
- For additional information, refer to the procedures in this article.
