Valve Cover - RH: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration |
Tool Name |
Tool Number |
|
|
Remover, Spark Plug Wire |
303-106 (T74P-6666-A) |
Material
| Item |
Specification |
Silicone Brake Caliper Grease and Dielectric Compound
XG-3-A |
ESE-M1C171-A |
Courtesy of FORD MOTOR CO.

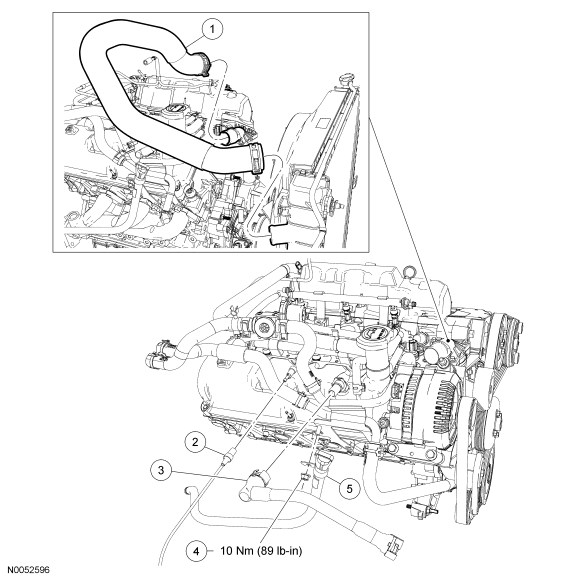

| Item |
Part Number |
Description |
| 1 |
8620 |
Upper radiator hose |
| 2 |
19C828 |
A/C vacuum reservoir hose |
| 3 |
6758 |
Crankcase breather hose |
| 4 |
N621939 |
Transmission fluid level indicator tube nut |
| 5 |
7A228 |
Transmission fluid level indicator tube |
Courtesy of FORD MOTOR CO.

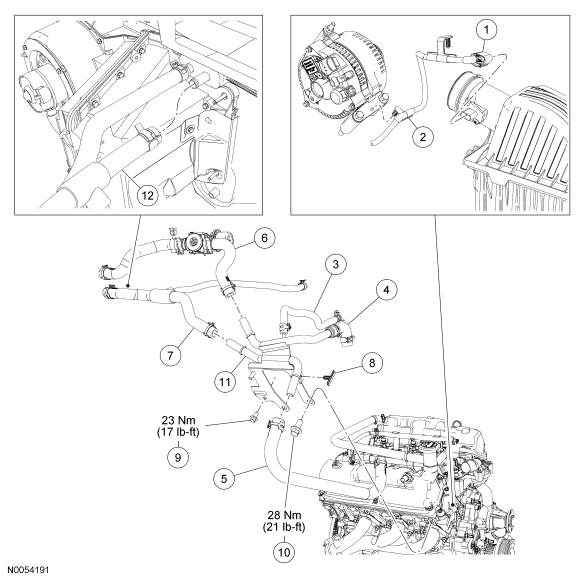

| Item |
Part Number |
Description |
| 1 |
14A464 |
Mass air flow (MAF) sensor electrical connector (part of 12B637) |
| 2 |
13A506 |
Wiring harness retainer (part of 12B637) |
| 3 |
18465 |
Heated PCV coolant hose |
| 4 |
18472 |
Heater hose |
| 5 |
18C266 |
Heater hose |
| 6 |
18D334 |
Heater hose |
| 7 |
18472 |
Heater hose |
| 8 |
13A506 |
Wiring harness retainer (part of 12B637) |
| 9 |
W500023 |
Heater tube assembly rear bolt |
| 10 |
W500041 |
Heater tube assembly front bolt |
| 11 |
18696 |
Heater tube assembly |
| 12 |
18472 |
Heater hose |
Courtesy of FORD MOTOR CO.

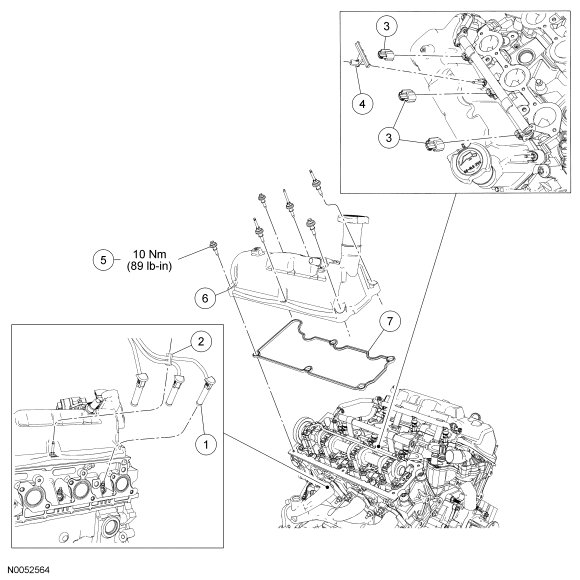

| Item |
Part Number |
Description |
| 1 |
- |
RH spark plug wire (part of 12280) |
| 2 |
- |
RH spark plug wire retainer (part of 12280) |
| 3 |
14A464 |
Fuel injector electrical connectors (3 required) (part of 12B637) |
| 4 |
14A163 |
Wiring harness retainer (part of 12B637) |
| 5 |
6C519 |
RH valve cover bolt and grommet assembly |
| 6 |
6583 |
RH valve cover |
| 7 |
6584 |
RH valve cover gasket |
