Intake Manifold: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

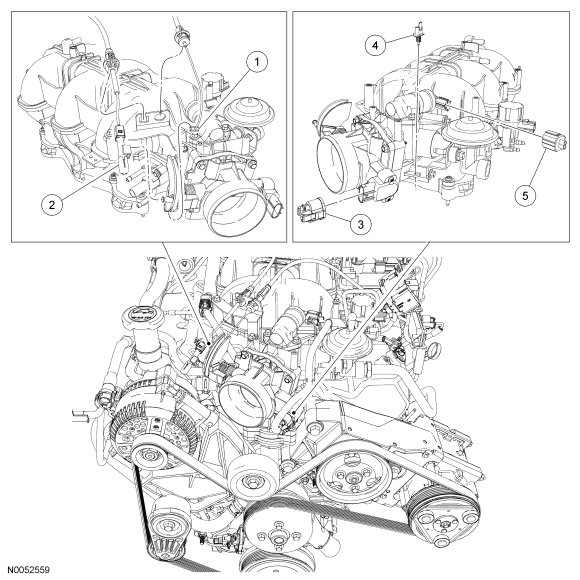

Fig 1: Throttle Cables and Electrical Connectors

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9A758	Accelerator cable
2	9A825	Speed control actuator cable (speed control equipped vehicles only)
3	14A464	Throttle position (TP) sensor electrical connector (part of 12B637)
4	13A506	Wiring harness retainer (part of 12B637)
5	14A464	Idle air control (IAC) motor electrical connector (part of 12B637)

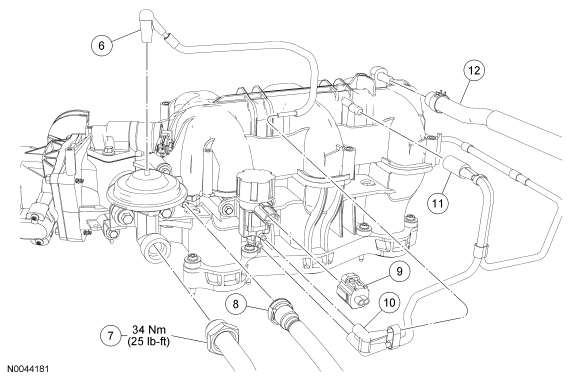

Fig 2: Vacuum Hoses and Electrical Connectors With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
6	9E499	EGR valve vacuum hose connector (part of 9E498)
7	9E469	Exhaust manifold-to-EGR valve tube
8	9Y476	Evaporative emissions (EVAP) purge valve-to-intake manifold hose
9	14A464	EGR vacuum regulator solenoid electrical connector (part of 12B637)
10	9E499	EGR vacuum regulator solenoid vacuum connector (part of 9E498)
11	9E499	Main vacuum hose connector (part of 9E498)
12	160200	Brake booster vacuum hose

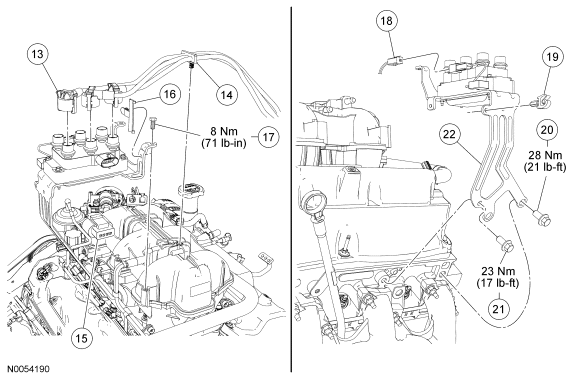

Fig 3: Spark Plug Wires and Ignition Coil With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
13	-	RH spark plug wires (part of 12280)
14	-	RH spark plug wire retainer (part of 12280)
15	14A464	Ignition coil electrical connector (part of 12B637)
16	13A506	Wiring harness retainer (part of 12B637)
17	-	Ignition coil bracket upper bolt (2 required)
18	14489	Radio interference capacitor electrical connector (part of 12B637)
19	N802768	Accelerator cable retainer
20	W500041	Ignition coil bracket lower rear bolt
21	W500023	Ignition coil bracket lower front bolt
22	12257	Ignition coil bracket

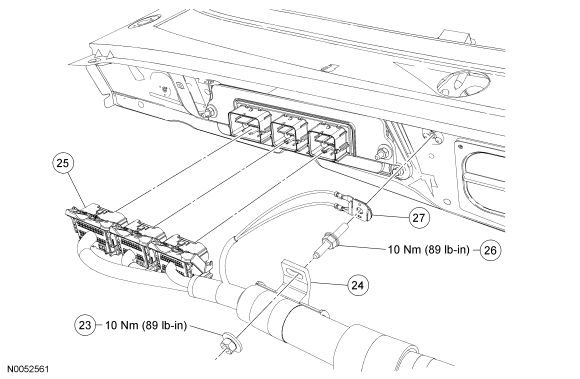

Fig 4: PCM Electrical Connectors With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
23	N621906	Wiring harness retainer nut
24	-	Wiring harness retainer (part of 12B637)
25	14A464	PCM electrical connector (part of 12B637)
26	N806925	Wiring harness ground wire stud bolt
27	14463	Wiring harness ground terminal (part of 12B637)

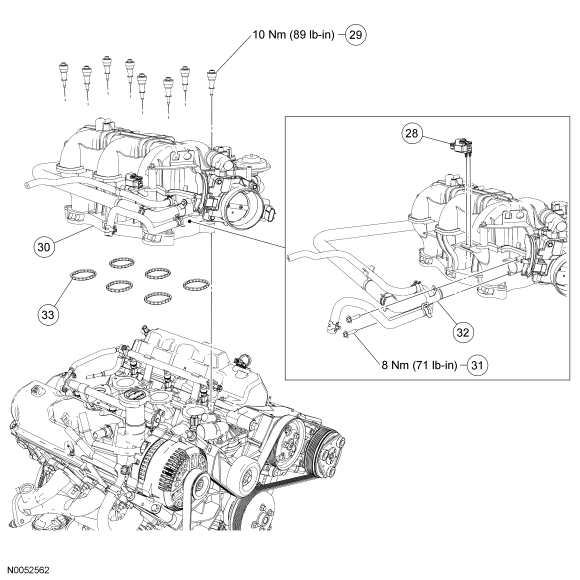

Fig 5: Intake Manifold With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
28	-	Knock sensor (KS) electrical connector (part of 12A699)
29	95479	Intake manifold bolt and grommet assembly (8 required) (part of 9424)
30	9424	Intake manifold
31	W704310	Heated PCV fitting bolt (2 required)
32	9A474	Heated PCV fitting
33	9461	Intake manifold gasket (6 required)
