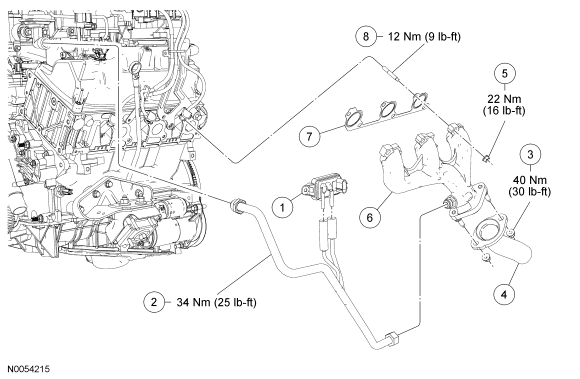

Exhaust Manifold - LH: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9J460 | Differential pressure feedback EGR sensor |
| 2 | 9E469 | Exhaust manifold-to-EGR valve tube |
| 3 | W701706 | LH exhaust manifold-to-dual converter Y-pipe nut (2 required) |
| 4 | 5F250 | Dual converter Y-pipe |
| 5 | W701706 | LH exhaust manifold nut (6 required) |
| 6 | 9430 | LH exhaust manifold |
| 7 | 9448 | LH exhaust manifold gasket |
| 8 | W705495 | LH exhaust manifold stud (6 required) |
