Engine Support Insulators: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Adapter for 303-290A	303-290-01
	Adapter for 303-290A	303-290A-03A
	Lifting Bracket	303-050 (T70P-6000)
	Support Bar, Engine	303-290A

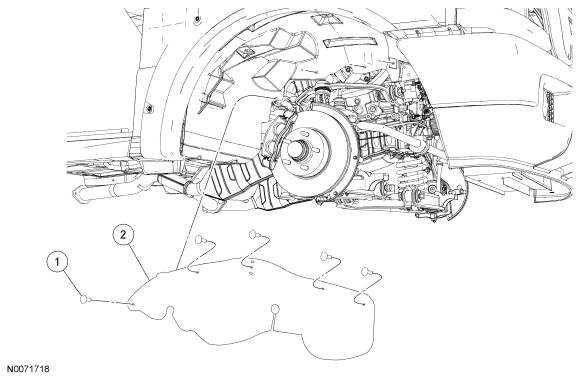

Fig 1: RH Inner Fender Splash Shield

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	RH inner fender splash shield push pin (5 required)
2	16034	RH inner fender splash shield

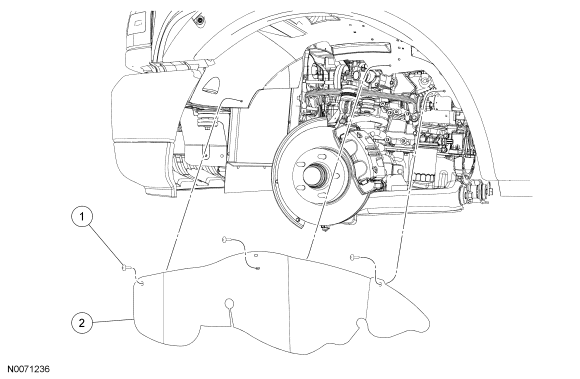

Fig 2: LH Inner Fender Splash Shield

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	LH inner fender splash shield push pin (3 required)
2	16035	LH inner fender splash shield

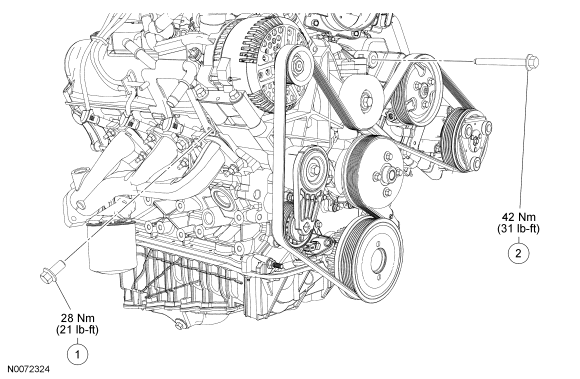

Fig 3: Coolant Tube and Power Steering and A/C Compressor Bracket Bolts With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500041	Coolant tube bolt
2	W807938	A/C compressor and power steering bracket bolt

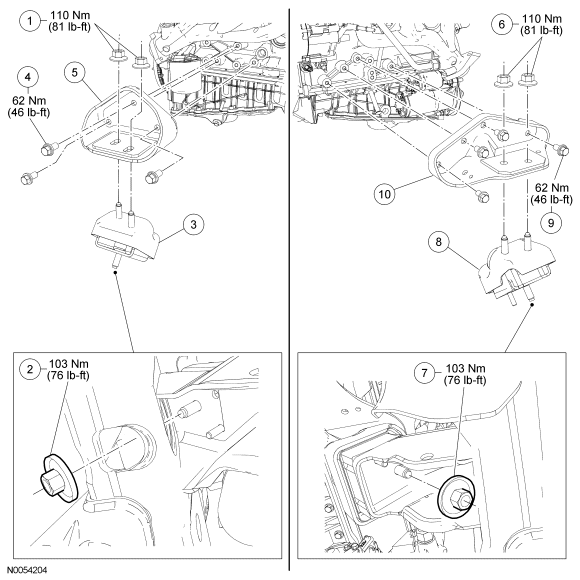

Fig 4: Rear Wheel Drive (RWD) Vehicles With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W710719	RH engine support insulator-to-RH engine bracket nuts
2	W710657	RH engine support insulator-to-frame nut
3	84947	RH engine support insulator
4	W711856	RH engine bracket bolt (3 required)
5	6046	RH engine bracket
6	W710719	LH engine support insulator-to-LH engine bracket nuts
7	W710657	LH engine support insulator-to-frame nut
8	6B032	LH engine support insulator
9	W711856	LH engine bracket bolt (3 required)
10	6B033	LH engine bracket

NOTE: Front driveshaft removed for clarity.

Fig 5: Front Axle Assembly (Four Wheel Drive [4WD] Vehicles) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N811242	Front axle housing bolt
2	N811623	Flag nuts (3 required)
3	N808403	Front axle housing bolts (2 required)
4	3B476	Front axle housing vent hose
5	3002	Front axle housing

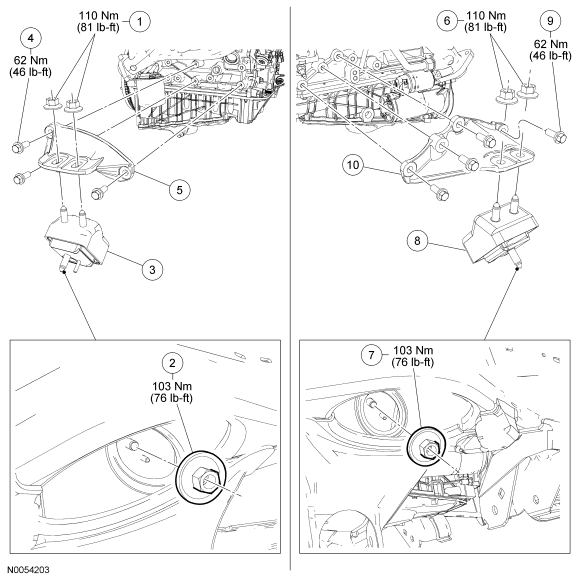

Fig 6: Four Wheel Drive (4WD) Vehicles With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W710719	RH engine support insulator-to-RH engine bracket nuts
2	W710657	RH engine support insulator-to-frame nut
3	84947	RH engine support insulator
4	W711857	RH engine bracket bolt (3 required)
5	6046	RH engine bracket
6	W710719	LH engine support insulator-to-LH engine bracket nuts
7	W710657	LH engine support insulator-to-frame nut
8	6B032	LH engine support insulator
9	W711857	LH engine bracket bolt (3 required)
10	6B033	LH engine bracket
