Cylinder Block Cradle: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Adapter for 303-290A	303-290-01
	Adapter for 303-290A	303-290A-03A
	Lifting Bracket	303-050 (T70P-6000)
	Support Bar, Engine	303-290A

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Motorcraft Silicone Gasket Remover ZC-30	-
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4

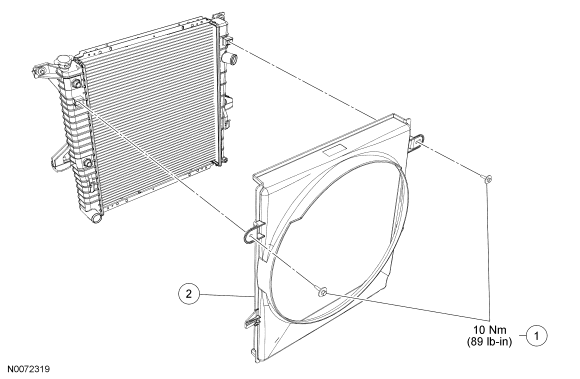

Fig 1: Cooling Fan Shroud With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N709027	Cooling fan shroud bolts (2 required)
2	8146	Cooling fan shroud

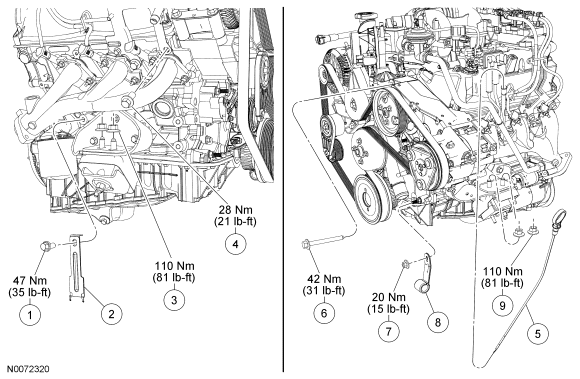

Fig 2: Brackets, Tubes and Engine Support Insulators With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N802653	Transmission cooler tube bracket bolt
2	7N291	Transmission cooler tube bracket
3	N807479	RH engine support insulator nut
4	W500041	Heater tube assembly front bolt
5	6750	Oil level indicator
6	N807983	Power steering and A/C compressor bracket bolt
7	N621940	A/C hose bracket nut
8	19B632	A/C hose bracket (part of 12D734)
9	N807479	LH engine support insulator nuts

NOTE: Front driveshaft removed for clarity.

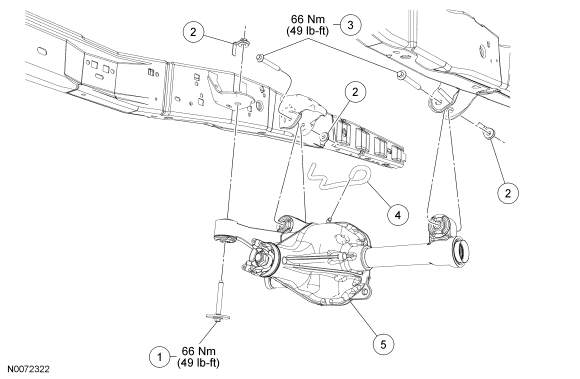

Fig 3: Front Axle Assembly (Four Wheel Drive [4WD] Vehicles) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N811242	Front axle housing bolt
2	N811623	Flag nuts (3 required)
3	N808403	Front axle housing bolts (2 required)
4	3B476	Front axle housing vent hose
5	3002	Front axle housing
