Cylinder Head: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Compressor, Valve Spring | 303-581 (T97T-6565-A) | |
| Installer, Valve Stem Oil Seal | 303-370 (T90T-6571-A) |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-30 Premium Synthetic Blend Motor Oil XO-5W30-QSP (US); Motorcraft SAE 5W-30 Super Premium Motor Oil CXO-5W30-LSP12 (Canada); or equivalent |
WSS-M2C929-A |

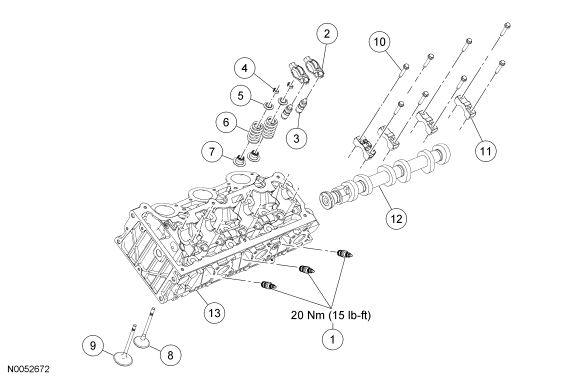

| Item | Part Number | Description |
|---|---|---|
| 1 | 12405 | Spark plugs |
| 2 | 6529 | Camshaft roller follower |
| 3 | 6C501 | Hydraulic lash adjuster |
| 4 | 6518 | Valve spring retainer key (12 required) |
| 5 | 6A536 | Valve spring retainer |
| 6 | 6513 | Valve spring (6 required) |
| 7 | 6571 | Valve seal (6 required) |
| 8 | 6505 | Exhaust valve |
| 9 | 6507 | Intake valve |
| 10 | W702341 | Camshaft bearing cap mounting bolt (8 required) |
| 11 | 6A258 | Camshaft bearing cap (4 required) |
| 12 | 6A274 | LH camshaft |
| 13 | 6050 | Cylinder head |
