Valve Cover - RH: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket Remover ZC-30	-

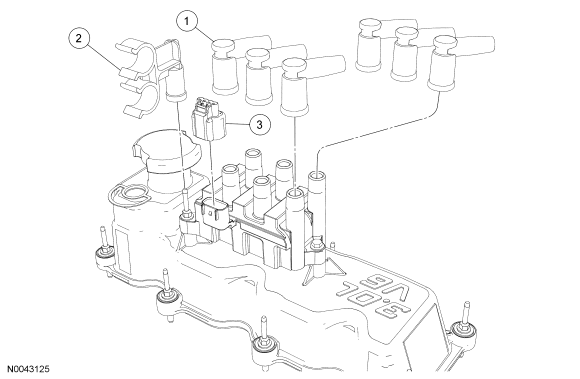

Fig 1: View Of Spark Plug Wires And Heater Hose Support (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	12286	Spark plug wires
2	18D331	Heater hose support
3	14A464	Ignition coil electrical connector

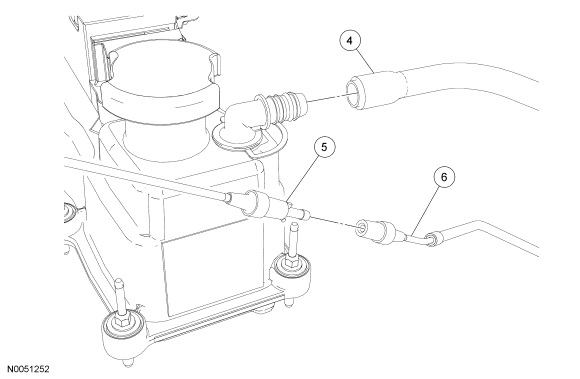

Fig 2: View Of Spark Plug Wires And Heater Hose Support (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
4	6C342	Crankcase ventilation tube
5	19C828	A/C vacuum hose
6	9E498	Main vacuum hose

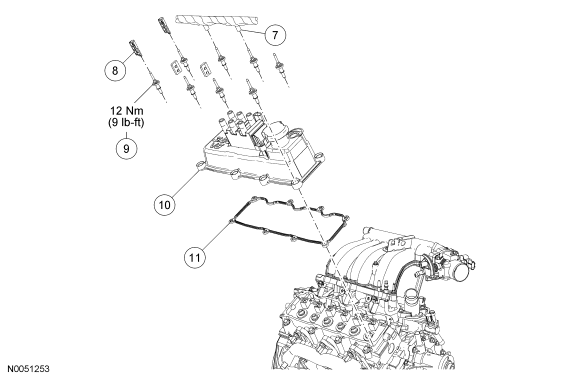

Fig 3: View Of Spark Plug Wires And Heater Hose Support With Torque Specifications (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
7	13A506	Engine wiring harness retainer (part of 12B637)
8	12297	Spark plug wire holder
9	6C520	RH valve cover bolt (8 required)
10	6583	RH valve cover
11	6584	RH valve cover gasket
