Upper Intake Manifold: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

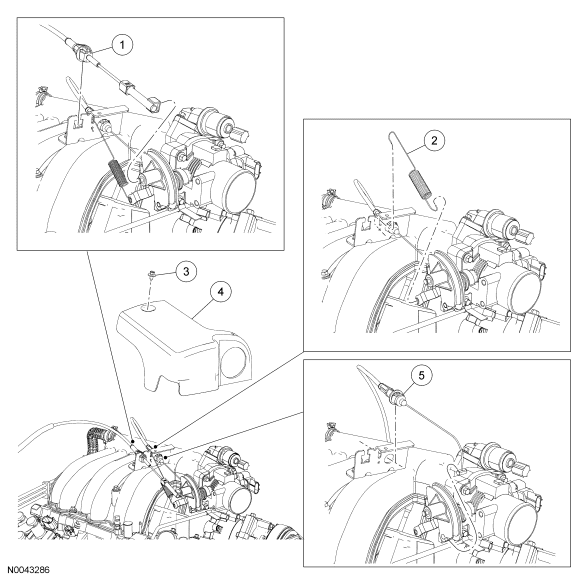

Fig 1: View Of Intake Manifold Upper 3.0L (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9A825	Speed control cable
2	9E894	Return spring
3	N800312	Bolt
4	9E766	Snow shield
5	9A758	Accelerator cable

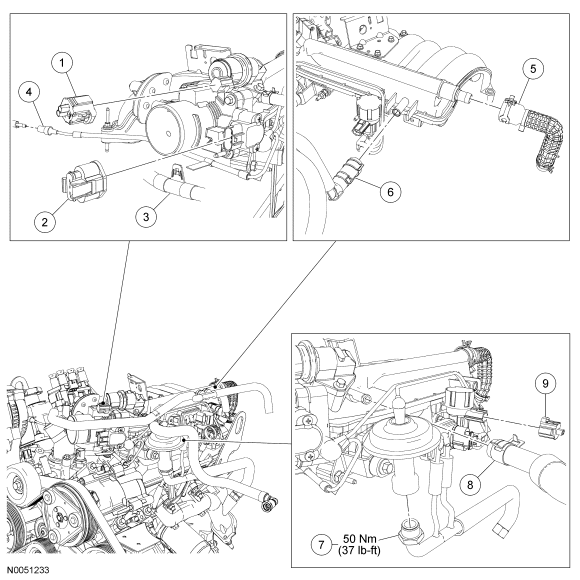

Fig 2: View Of Intake Manifold Upper 3.0L With Torque Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Idle air control (IAC) valve electrical connector (part of 12B637)
2	14A464	Throttle position (TP) sensor electrical connector (part of 12B637)
3	13A506	Wiring harness retainer
4	9E498	Vacuum hose
5	6C324	Positive crankcase ventilation (PCV) valve tube
6	9C482	Brake booster vacuum hose
7	9D477	Exhaust manifold-to-exhaust gas recirculation (EGR) valve tube
8	9Y476	Fuel vapor hose
9	14A464	EGR vacuum regulator solenoid electrical connector (part of 12B637)

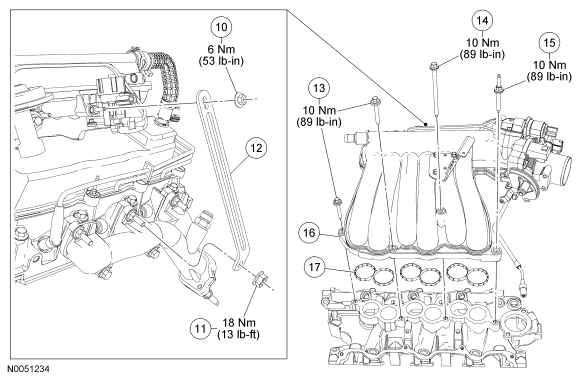

Fig 3: View Of Intake Manifold Upper 3.0L With Torque Specifications (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
10	N808338	Upper intake manifold brace upper nut
11	N804178	Upper intake manifold brace lower nut
12	95444	Upper intake manifold brace
13	W708242-S	Upper intake manifold bolt (2 required)
14	W706375-S	Upper intake manifold bolt
15	W707272-S	Upper intake manifold stud bolt
16	9424	Upper intake manifold
17	9H486	Upper intake manifold gasket (3 required)
