Oil Level Indicator and Tube: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item |
Specification |
Silicone Gasket and Sealant
TA-26 |
WSE-M4G323-A4 |
Motorcraft Metal Surface Prep
ZC-31 |
- |
Courtesy of FORD MOTOR CO.

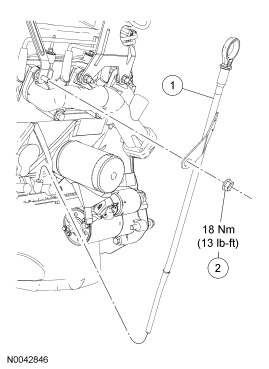

| Item |
Part Number |
Description |
| 1 |
6754 |
Oil level indicator tube assembly |
| 2 |
N804178-S |
Nut |
