Lower Intake Manifold: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket Remover ZC-30	-

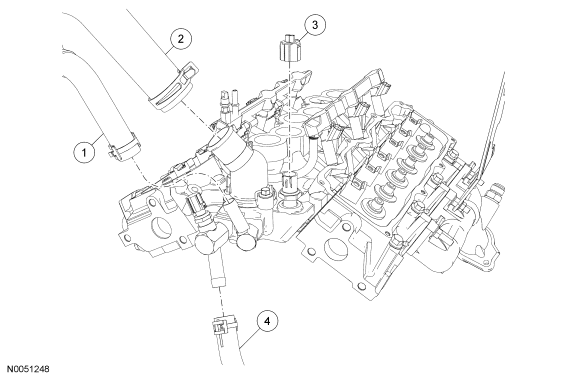

Fig 1: View Of Lower Intake Manifold Components (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	18C266	Heater hose
2	8B274	Upper radiator hose
3	14A464	Engine coolant temperature (ECT) sensor electrical connector
4	-	Coolant bypass hose (part of 8B273)

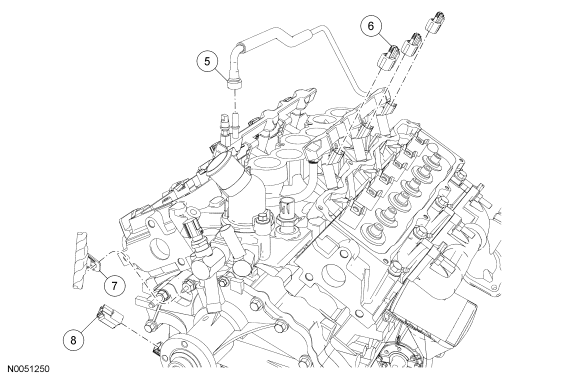

Fig 2: View Of Lower Intake Manifold Components (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
5	9J338	Fuel tube spring lock coupling
6	14A464	Fuel injector electrical connector (6 required) (part of 12B637)
7	13A506	Wiring harness retainer (part of 12B637)
8	14A464	Crankshaft position (CKP) sensor electrical connector (part of 12B637)

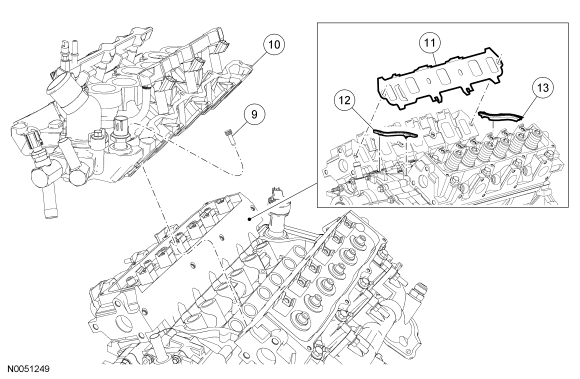

Fig 3: View Of Lower Intake Manifold Components (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
9	N803539	Lower intake manifold bolt (8 required)
10	9K461	Lower intake manifold
11	9439	Lower intake manifold gasket (2 required)
12	9A425	Lower intake manifold front seal
13	9A424	Lower intake manifold rear seal
