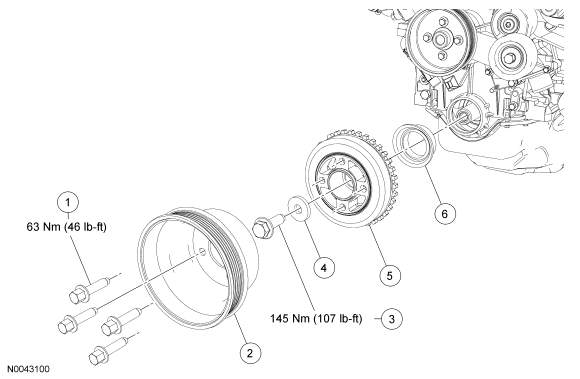

Lower End Components - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N807551 |
Crankshaft pulley bolt (4 required) |
| 2 |
6312 |
Crankshaft pulley |
| 3 |
N808089-S |
Crankshaft damper bolt |
| 4 |
6373 |
Crankshaft damper bolt washer |
| 5 |
6316 |
Crankshaft damper |
| 6 |
6700 |
Crankshaft front seal |
- For additional information, refer to the procedures in this article.
