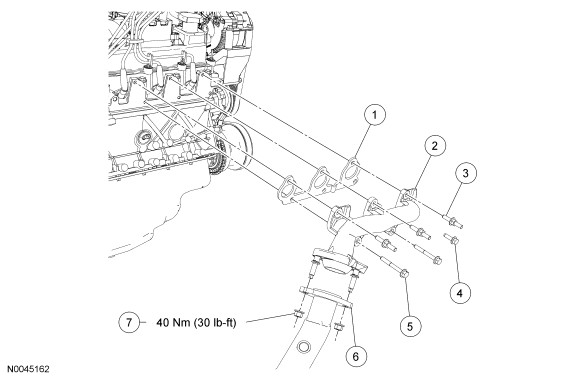

Exhaust Manifold - RH: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
9448 |
RH exhaust manifold gasket |
| 2 |
9430 |
RH exhaust manifold |
| 3 |
N811572-S |
RH exhaust manifold stud bolt (3 required) |
| 4 |
N811571-S |
RH exhaust manifold bolt |
| 5 |
N811573-S |
RH exhaust manifold bolt (2 required) |
| 6 |
5F250 |
Exhaust pipe |
| 7 |
W705443-S |
Exhaust flange nut (2 required) |
