Exhaust Manifold - LH: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4
Motorcraft Metal Surface Prep ZC-31	-

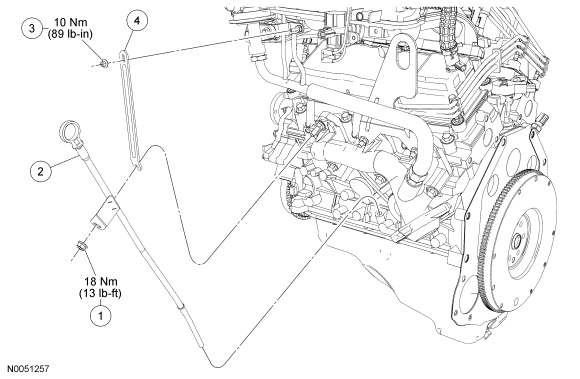

Fig 1: View Of Exhaust Manifold - LH With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N804178-S	Oil level indicator and tube assembly nut
2	6754	Oil level indicator and tube assembly
3	N808338-S	Upper intake manifold support brace nut
4	95444	Upper intake manifold support brace

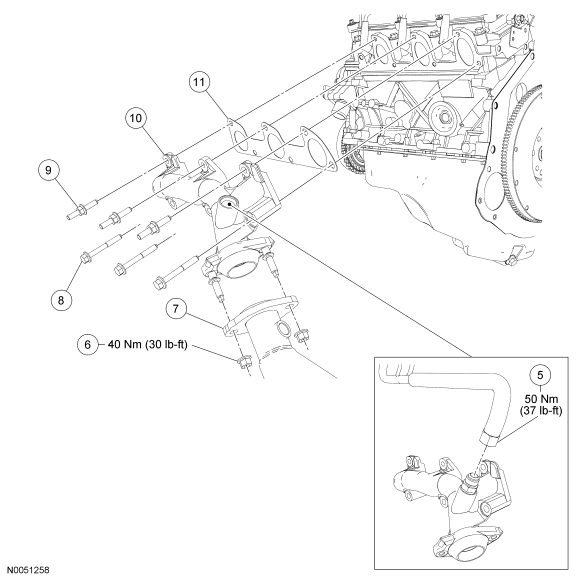

Fig 2: View Of Exhaust Manifold - LH With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
5	9D477	Exhaust manifold-to-exhaust gas recirculation (EGR) valve tube
6	W705443-S	Exhaust flange nut (2 required)
7	5F250	Exhaust pipe
8	N811573-S	LH exhaust manifold bolt (3 required)
9	N811572-S	LH exhaust manifold stud bolt (3 required)
10	9431	LH exhaust manifold
11	9448	LH exhaust manifold gasket
