Engine Support Insulators - LH: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Lifting Eyes | 303-D030 (D81L-6001-D) or equivalent | |
| Three-Bar Engine Support Kit | 303-F073 or equivalent |

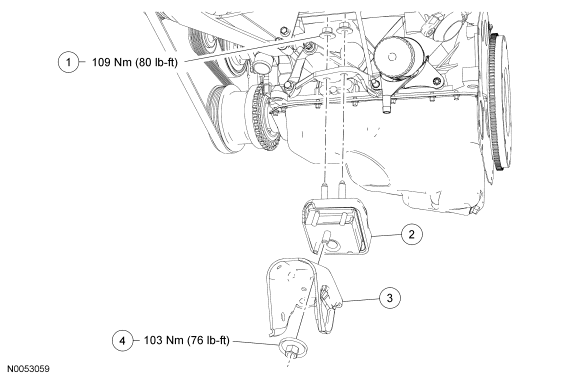

| Item | Part Number | Description |
|---|---|---|
| 1 | W710719 | Engine support insulator nut (2 required) |
| 2 | 6B032 | Engine support insulator |
| 3 | 31570 | Engine mounting bracket (part of 5005) |
| 4 | W710657 | Engine support insulator nut |
