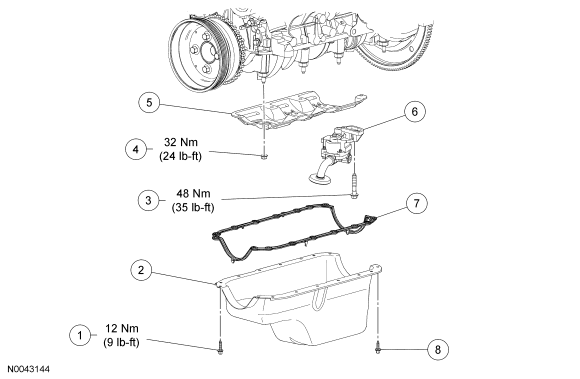

Engine Lubrication Components - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W708366 | Oil pan bolt (2 required) |
| 2 | 6675 | Oil pan |
| 3 | N606563 | Oil pump bolt |
| 4 | W520513 | Oil pan baffle nut (7 required) |
| 5 | 6687 | Oil pan baffle |
| 6 | 6600 | Oil pump |
| 7 | 6710 | Oil pan gasket |
| 8 | W708365 | Oil pan bolt (14 required) |
- For additional information, refer to the procedures in this article.
