Engine Front Cover: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Thread Sealant with PTFE TA-24	WSK-M2G350-A2
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

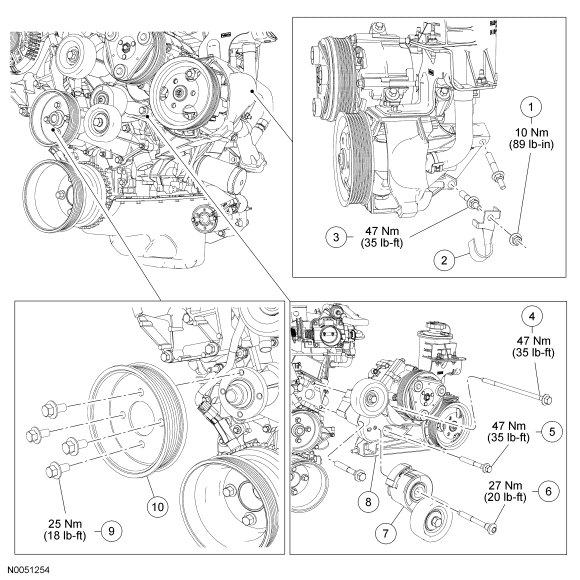

Fig 1: View Of Engine Front Cover With Torque Specifications (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W620481-S	Wiring harness bracket nut
2	7B085	Wiring harness bracket (part of 14A280)
3	N807123-S	A/C compressor and power steering pump bracket stud bolt (2 required)
4	N807124-S	A/C compressor and power steering pump bracket bolt
5	N606068-S	A/C compressor and power steering pump bracket bolt (2 required)
6	2021BA209	Belt tensioner bolt
7	6B209	Belt tensioner
8	19E708	A/C compressor and power steering pump bracket
9	N605784-S	Coolant pump pulley bolt (4 required)
10	8A528	Coolant pump pulley

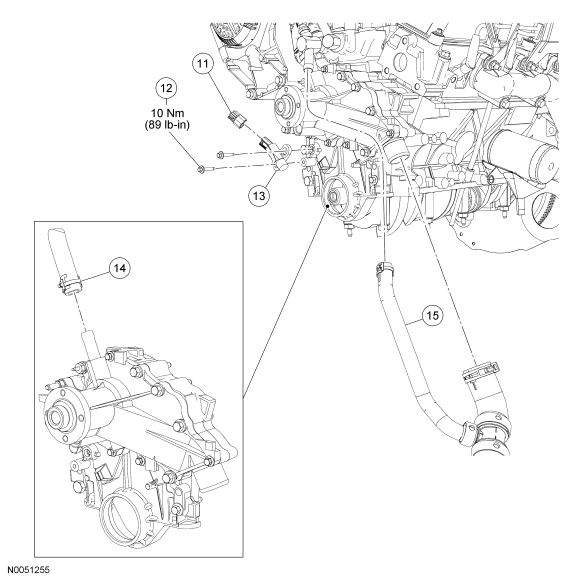

Fig 2: View Of Engine Front Cover With Torque Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
11	14A464	Crankshaft position sensor electrical connector (part of 12B637)
12	W706175-S	Crankshaft position sensor bolt (2 required)
13	6C315	Crankshaft position sensor
14	18C266	Heater hose
15	8B273	Lower radiator hose assembly

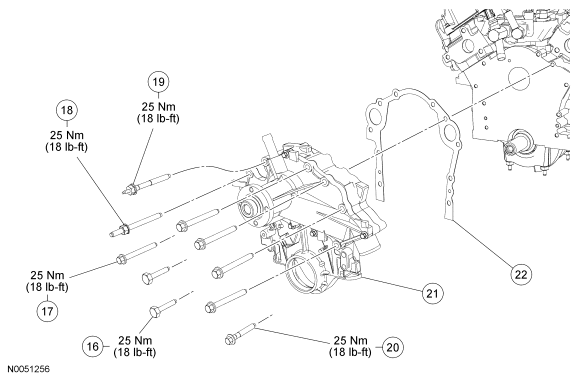

Fig 3: View Of Engine Front Cover With Torque Specifications (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
16	N-804113-S	Engine front cover bolt (2 required)
17	N811375-S	Engine front cover bolt (5 required)
18	N807515-S	Engine front cover stud bolt
19	N708249-S	Engine front cover stud bolt
20	N606543-S	Engine front cover bolt
21	6059	Engine front cover
22	6020	Engine front cover gasket
