Intake Manifold Assembly: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

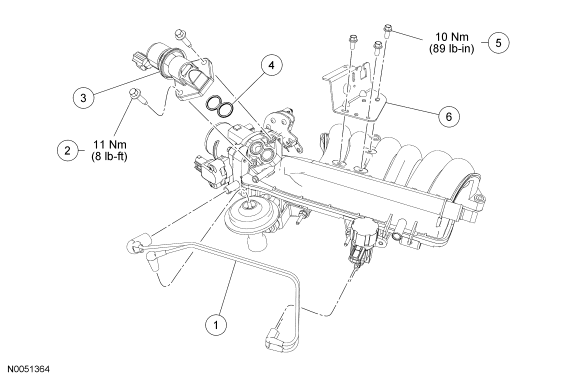

| Item |
Part Number |
Description |
| 1 |
9E498 |
Vacuum harness |
| 2 |
W500214 |
Idle air control (IAC) valve bolt (2 required) |
| 3 |
9F715 |
IAC valve |
| 4 |
- |
IAC valve gasket |
| 5 |
- |
Accelerator cable bracket bolt (3 required) |
| 6 |
- |
Accelerator cable bracket |
Courtesy of FORD MOTOR CO.

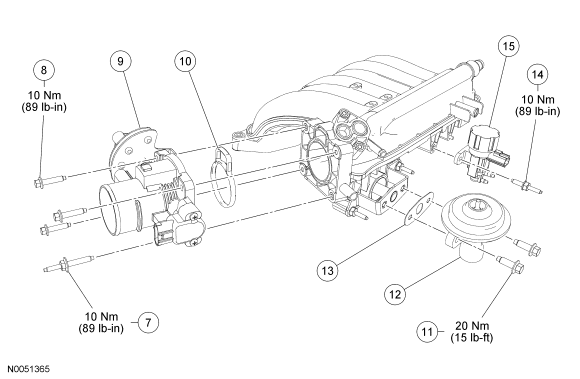

| Item |
Part Number |
Description |
| 7 |
W701632 |
Throttle body (TB) stud bolt |
| 8 |
W701669 |
TB bolt (3 required) |
| 9 |
9E926 |
TB |
| 10 |
9E936 |
TB gasket |
| 11 |
W500224 |
Exhaust gas recirculation (EGR) valve bolt (2 required) |
| 12 |
9E444 |
EGR valve |
| 13 |
9D476 |
EGR valve gasket |
| 14 |
- |
EGR vacuum regulator solenoid valve stud bolt |
| 15 |
9J489 |
EGR vacuum regulator solenoid |
