Cylinder Head: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Compressor, Valve Spring | 303-163 (T81P-6513-A) |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

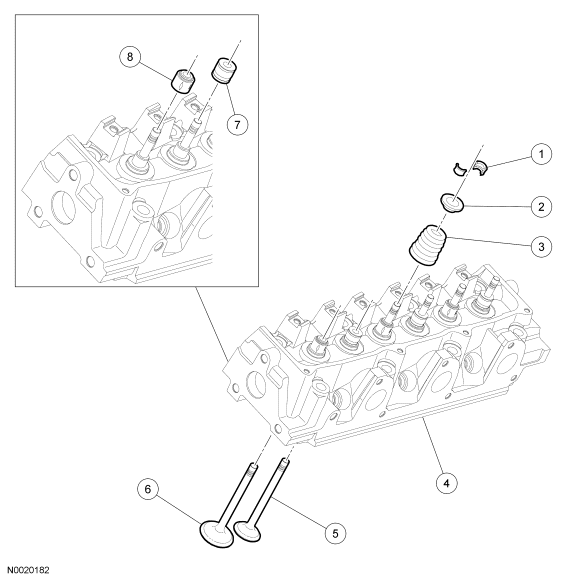

| Item | Part Number | Description |
|---|---|---|
| 1 | 6518 | Valve spring retainer key (12 required) |
| 2 | 6514 | Valve spring retainer (6 required) |
| 3 | 6513 | Valve spring (6 required) |
| 4 | 6050 | Cylinder head |
| 5 | 6505 | Exhaust valve (3 required) |
| 6 | 6507 | Intake valve (3 required) |
| 7 | 6A517 | Exhaust valve seal (3 required) |
| 8 | 6A517 | Intake valve seal (3 required) |
