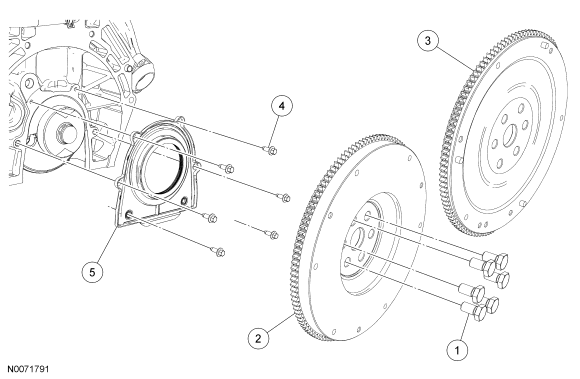

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
6379 |
Flywheel/flexplate bolt (6 required) |
| 2 |
6375 |
Flywheel |
| 3 |
6375 |
Flexplate |
| 4 |
W500212 |
Crankshaft rear seal and retainer plate bolt (6 required) |
| 5 |
6K318 |
Crankshaft rear seal and retainer plate |
- For additional information, refer to the procedures in this article.
