Exhaust Manifold: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color)	WSS-M97B51-A1
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

Fig 1: RH Splash Shield

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	RH splash shield push pin (5 required)
2	16034	RH splash shield

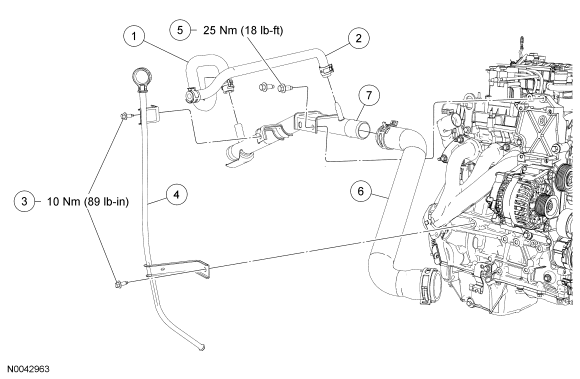

Fig 2: Coolant Hoses and Oil Level Indicator and Tube With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	18C266	Heater coolant hose
2	8W005	Degas bottle coolant hose
3	W500211	Oil level indicator tube bolts (2 required)
4	-	Oil level indicator and tube assembly
5	W500222	Front coolant outlet pipe bolt (2 required)
6	8B274	Upper radiator coolant hose
7	8594	Front coolant outlet pipe

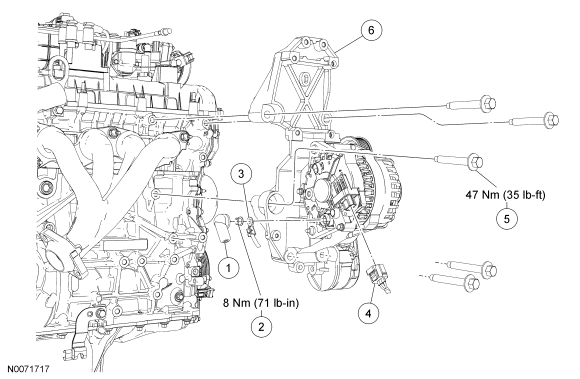

Fig 3: Generator and Bracket With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Generator battery cable boot (part of 14A280)
2	W705790	Generator battery cable nut
3	-	Generator battery cable (part of 14A280)
4	-	Generator electrical connector (part of 14A280)
5	W704432	Generator and support bracket assembly bolt (5 required)
6	10C377	Generator and support bracket assembly

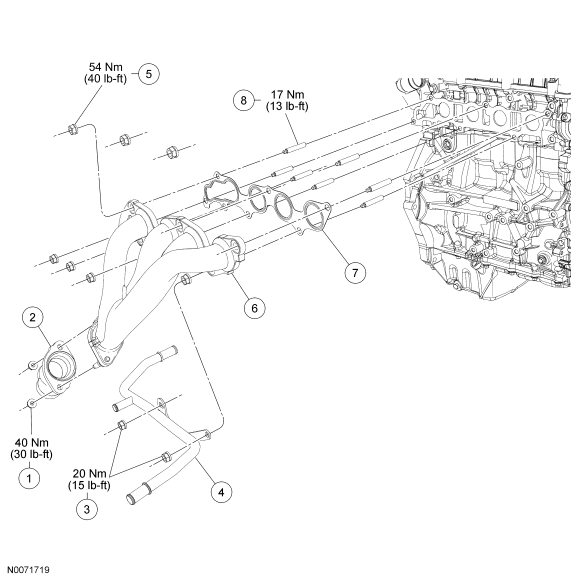

Fig 4: Exhaust Manifold With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705443	Exhaust downpipe flange nut (2 required)
2	5E212	Exhaust downpipe
3	W708176	Coolant tube nuts (2 required)
4	8C633	Coolant tube
5	W708176	Exhaust manifold nut (7 required)
6	9430	Exhaust manifold
7	9448	Exhaust manifold gasket
8	W704474	Exhaust manifold studs (7 required)
