Cylinder Head: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
| Silicone Gasket Remover ZC-30 |
- |

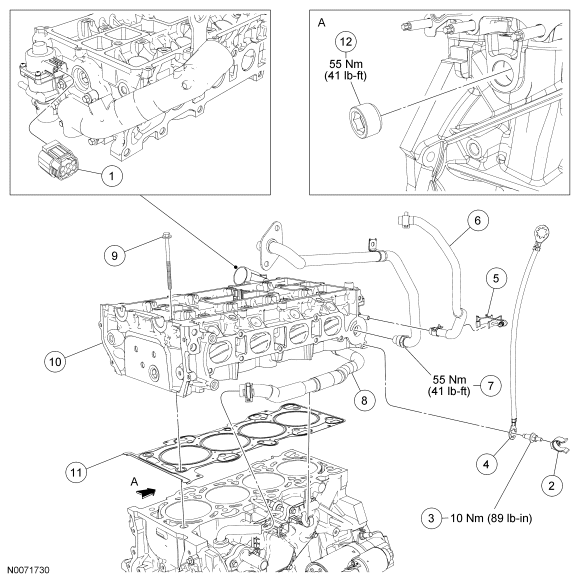

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | EGR valve electrical connector (part of 12B637) |
| 2 | 6758 | Hose position retainer clip |
| 3 | 6758 | Ground cable stud bolt |
| 4 | 14303 | Ground cable |
| 5 | 6758 | EGR coolant hose position retainer clip |
| 6 | 9Y439 | EGR coolant hose |
| 7 | 9E740 | EGR tube |
| 8 | 8548 | Coolant bypass hose |
| 9 | - | Cylinder head bolt (10 required) |
| 10 | 6090 | Cylinder head |
| 11 | 6051 | Cylinder head gasket |
| 12 | W701548 | Cylinder block drain plug |
