Crankshaft Pulley: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 205-126 | 205-072-02 | |
| Alignment Plate, Camshaft | 303-465 (T94P-6256-CH) | |
| Holding Fixture, Drive Pinion Flange | 205-126 (T78P-4851-A) | |
| Timing Peg, Crankshaft | 303-507 |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

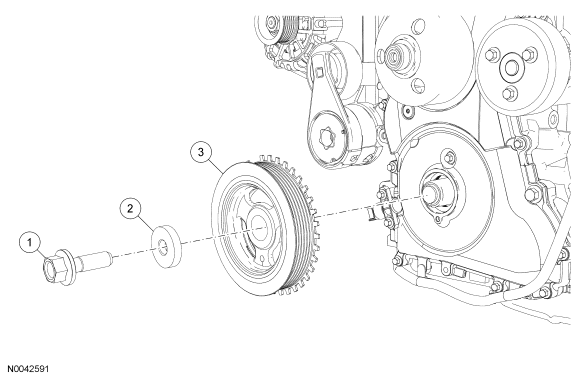

| Item | Part Number | Description |
|---|---|---|
| 1 | 6K340 | Crankshaft pulley bolt |
| 2 | - | Crankshaft pulley bolt washer |
| 3 | 6316 | Crankshaft pulley |
