Cylinder Head: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Compressor, Valve Spring	303-472 (T94P-6565-AH)
	Impact Hammer	307-005 (T59L-100-B)
	Valve Spring Compressor	303-350 (T89P-6565-A)
	Valve Spring Compressor Set	303-300 (T87C-6565-A)
	Valve Stem Seal Remover	303-468 (T94P-6510-AH)
	Valve Stem Seal Replacer	303-470 (T94P-6510-CH)

Material

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

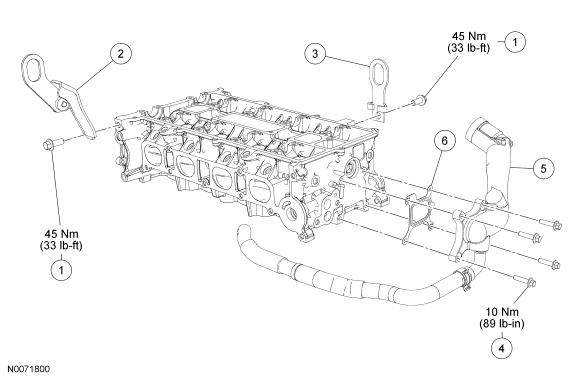

Fig 1: Cylinder Head - Coolant Connection and Lifting Eyes With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500033	Engine lifting eye bolts (2 required)
2	17K077	Front engine lifting eye
3	17K004	Rear engine lifting eye
4	W500015	Coolant outlet pipe bolt (4 required)
5	9B321	Coolant outlet pipe
6	8255	Coolant outlet pipe gasket

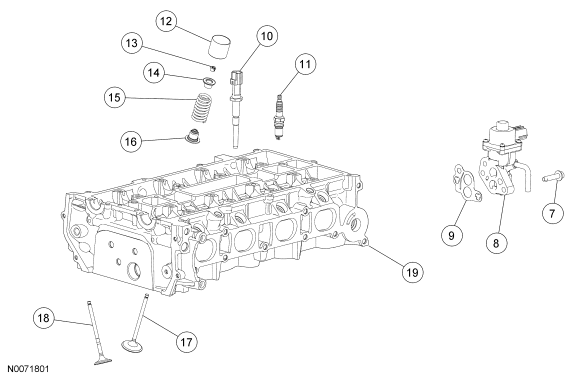

Fig 2: Cylinder Head - EGR Valve, Spark Plugs, Cylinder Head Temperature (CHT) Sensor and Valves

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
7	W500225	EGR valve bolt (2 required)
8	9D475	EGR valve
9	9D476	EGR valve gasket
10	6G004	Cylinder head temperature (CHT) sensor
11	12405	Spark plug (4 required)
12	6500	Valve tappet (16 required)
13	6518	Valve spring retainer key (16 required)
14	6514	Valve spring retainer (16 required)
15	6513	Valve spring (16 required)
16	6517	Valve seal (16 required)
17	6505	Intake valve (8 required)
18	6507	Exhaust valve (8 required)
19	6049	Cylinder head
