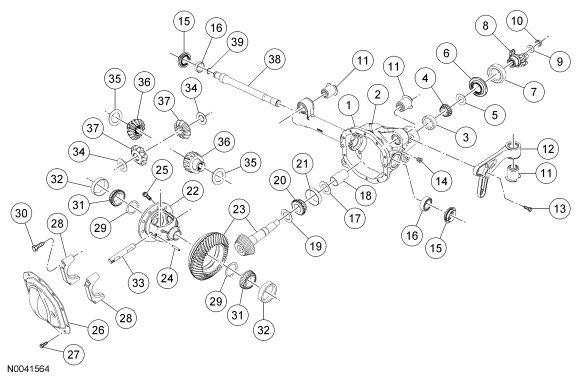

Front Drive Axle and Differential
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Differential housing |
| 2 | Vent tube |
| 3 | Differential drive outer pinion bearing cup |
| 4 | Outer pinion bearing |
| 5 | Front axle drive pinion shaft oil slinger |
| 6 | Pinion seal |
| 7 | Drive pinion oil seal deflector |
| 8 | Pinion flange |
| 9 | Pinion nut washer |
| 10 | Pinion nut |
| 11 | Bushing (3 required) |
| 12 | Axle to frame bracket |
| 13 | Axle bracket to housing bolt (3 required) |
| 14 | Fill plug |
| 15 | Stub shaft oil seal |
| 16 | Stub shaft bearing |
| 17 | Oil restrictor plate (baffle) |
| 18 | Collapsible spacer |
| 19 | Pinion position shim |
| 20 | Inner pinion bearing |
| 21 | Inner pinion bearing cup |
| 22 | Differential case |
| 23 | Differential ring gear and pinion |
| 24 | Differential pinion shaft roll pin |
| 25 | Differential ring gear bolt (8 required) |
| 26 | Differential housing cover |
| 27 | Differential cover bolts (10 required) |
| 28 | Differential bearing cap |
| 29 | Differential preload/backlash shim |
| 30 | Differential bearing cap bolt (4 required) |
| 31 | Differential bearings |
| 32 | Differential bearing cup |
| 33 | Differential pinion shaft |
| 34 | Differential pinion thrust washers |
| 35 | Differential side gear thrust washers |
| 36 | Differential side gears |
| 37 | Differential pinion gears |
| 38 | Axle intermediate shaft |
| 39 | Axle circlip |
