Drive Pinion Flange and Drive Pinion Seal: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Holding Fixture, Drive Pinion Flange | 205-126 (T78P-4851-A) | |
| Installer, Drive Pinion Flange | 205-002 (TOOL-4858-E) or equivalent | |
| Installer, Drive Pinion Oil Seal | 205-208 (T83T-4676-A) | |
| 2-Jaw Puller | 205-D072 (D97L-4221-A) or equivalent |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A |

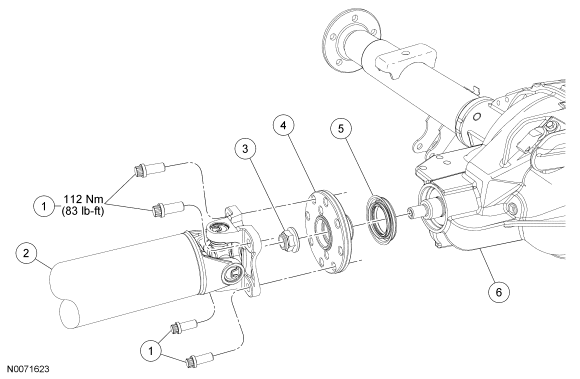

| Item | Part Number | Description |
|---|---|---|
| 1 | N800594-S | Driveshaft flange-to-pinion flange bolts (4 required) |
| 2 | 4602 | Driveshaft assembly |
| 3 | 389546-S100 | Pinion nut |
| 4 | 4851 | Pinion flange |
| 5 | 4676 | Drive pinion seal |
| 6 | 4010 | Rear drive axle housing |
