Drive Pinion Seal: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Driver Pinion Oil Seal | 205-208 (T83T-4676-A) |
Material
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

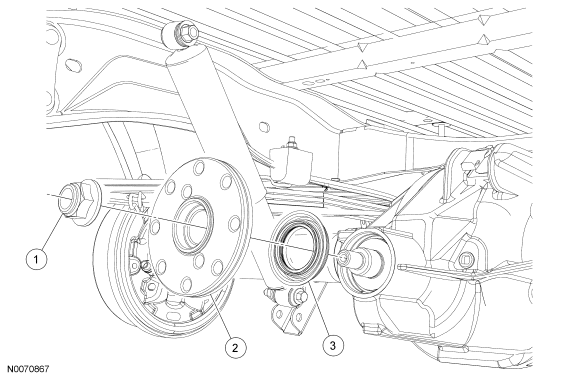

| Item | Part Number | Description |
|---|---|---|
| 1 | 389546-S100 | Pinion nut |
| 2 | 4851 | Pinion flange |
| 3 | 4676 | Drive pinion seal |
