Differential Case: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Dial Indicator Gauge with Holding Fixture | 100-002 (TOOL-4201-C) or equivalent | |
| Gauge, Clutch Housing | 308-021 (T75L-4201-A) | |
| Installer, Differential Shim | 205-220 (T85L-4067-AH) | |
| Installer, Differential Side Bearing | 205-009 (T57L-4221-A1) | |
| Step Plate | 205-D016 (D80L-630-5) or equivalent | |
| 2-Jaw Puller | 205-D072 (D97L-4221-A) or equivalent |

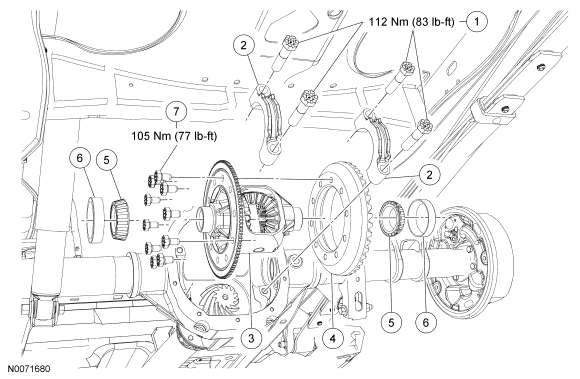

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Bearing cap bolts (part of 4010) |
| 2 | - | Bearing caps (part of 4010) |
| 3 | 4204 | Differential case |
| 4 | 4209 | Differential ring gear |
| 5 | 4221 | Differential bearings (2 required) |
| 6 | 4222 | Differential bearing cups (2 required) |
| 7 | 4216 | Differential ring gear bolt (10 required) |
