Wheel Cylinder: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item |
Specification |
High Performance DOT 3 Motor Vehicle Brake Fluid
PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada) |
ESA-M6C25-A or WSS-M6C62-A |
Courtesy of FORD MOTOR CO.

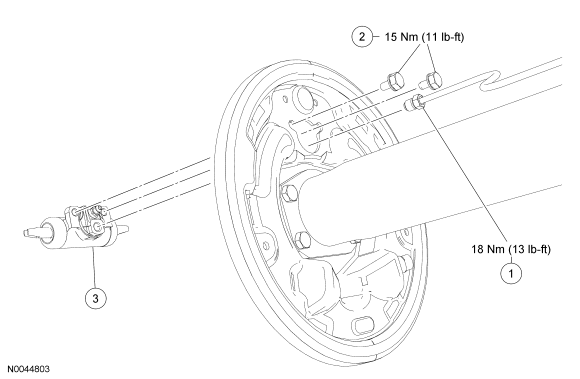

| Item |
Part Number |
Description |
| 1 |
- |
Brake tube-to-wheel cylinder fitting |
| 2 |
- |
Wheel cylinder bolts (2 required) (part of 2261) |
| 3 |
2261 |
Wheel cylinder |
