Fog Lamp: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

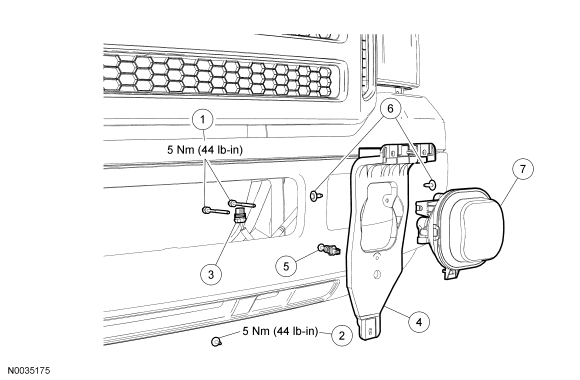

| Item | Part Number | Description |
|---|---|---|
| 1 | W709671 | Upper fog lamp bracket bolts (2 required) |
| 2 | W503924 | Lower fog lamp bracket bolt |
| 3 | - | Fog lamp electrical connector (part of 15A211) |
| 4 | 15A200 | Fog lamp and bracket assembly |
| 5 | - | Fog lamp adjustment bolt (part of 15A255) |
| 6 | - | Fog lamp pin-type retainers (2 required) (part of 15A255) |
| 7 | 15A201 | Fog lamp |
