Accelerator Pedal - Fixed: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

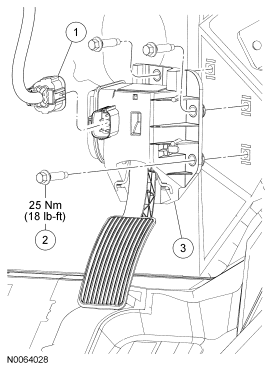

| Item |
Part Number |
Description |
| 1 |
- |
Accelerator pedal and position sensor assembly electrical connector (part of 14A005) |
| 2 |
W611636 |
Accelerator pedal and position sensor assembly bolt (3 required) |
| 3 |
9F836 |
Accelerator pedal and position sensor assembly |
