Compressor to Condenser Discharge Line - 4.6L, 5.4L: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

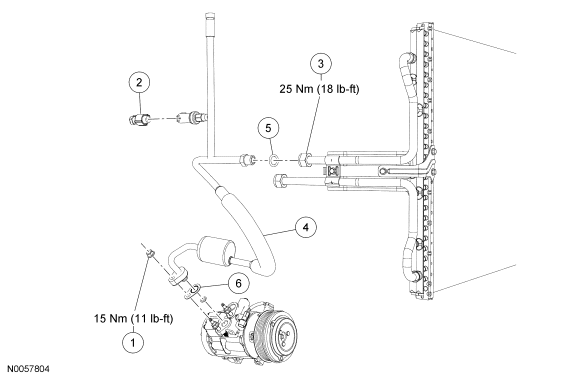

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C compressor discharge fitting nut |
| 2 | 12A581 | A/C pressure transducer electrical connector |
| 3 | - | Condenser inlet fitting (part of 19612) |
| 4 | 19972 | Compressor-to-condenser discharge line |
| 5 | 19E889 | O-ring seal (2 required) |
| 6 | 19B558 | Gasket seal |
