Vehicle Security Module (VSM) - SuperCab and SuperCrew: Notes

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Vehicles built before 12/2006 will have 3 electrical connectors (as shown) to the VSM, with one of them being used for the external tire pressure monitoring system (TPMS)/remote keyless entry (RKE) antenna. Vehicles built after 12/2006 will have 2 electrical connectors to the VSM, which will utilize an internal TPMS/RKE antenna.

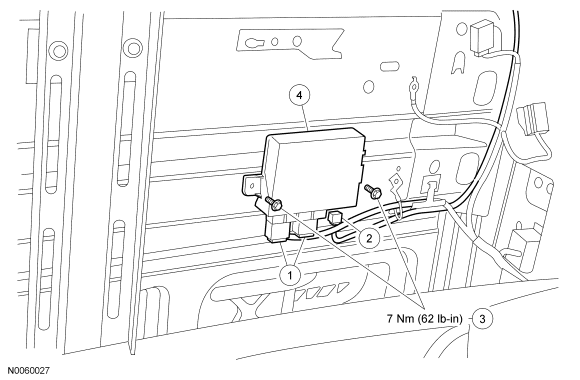

Fig 1: Identifying Vehicle Security Module (VSM) With Specifications - SuperCab And SuperCrew

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	VSM electrical connectors (part of 14A005)
2	14A614	VSM tire pressure monitoring system (TPMS)/remote keyless entry (RKE) antenna
3	W505253	VSM screws (2 required)
4	15K602	VSM
