Windshield Glass: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Interior Auto Glass Cut-Out Knife Kit (Electric) | 164-R2450 or equivalent | |
| Interior Auto Glass Cut-Out Knife Kit (Air Powered) | 164-R2451 or equivalent | |
| The Pumper | 164-R2459 or equivalent |
Material
| Item | Specification |
|---|---|
| Dow Automotive 2-Hour Cure |
|
| Urethane Adhesive Betaseal® Express |
- |
| Urethane One Step Glass Primer Betaprime® 5500/5500A/5500SA |
- |
| Sika 2-Hour Cure |
|
| Urethane Adhesive Sika Tack ASAP |
- |
| Urethane Metal and Glass Primer Sika 206 G+P |
- |
WARNING:
To prevent glass splinters from entering the eyes or cutting hands, wear safety glasses and heavy gloves when cutting and removing the glass from the vehicle.

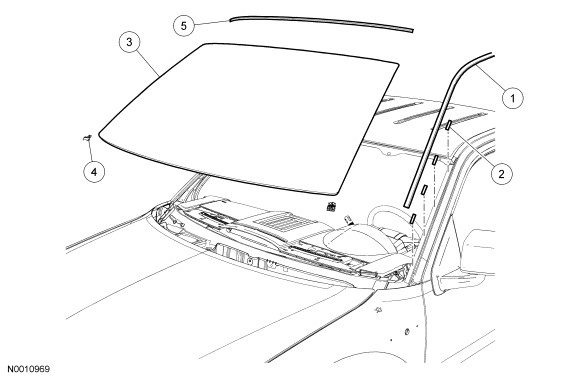

| Item | Part Number | Description |
|---|---|---|
| 1 | 03136 RH/LH | Roof ditch moulding |
| 2 | 10182 | Y-clip (8 required) |
| 3 | 03100 | Windshield glass |
| 4 | 03296 | Windshield glass spacer blocks (2 required) |
| 5 | 03682 | Windshield glass moulding assembly |
