Power Steering Pump to Steering Gear Pressure Line: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL CHART

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

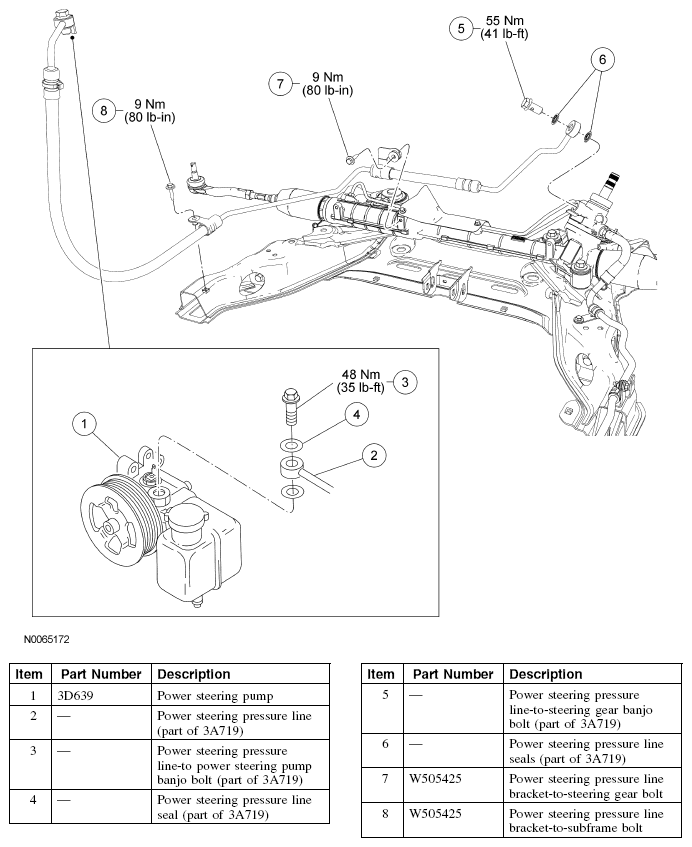

Fig 1: Identifying Power Steering Pump To Steering Gear Pressure Line Remove/Install Components (2.3L Engine)

Courtesy of FORD MOTOR CO.

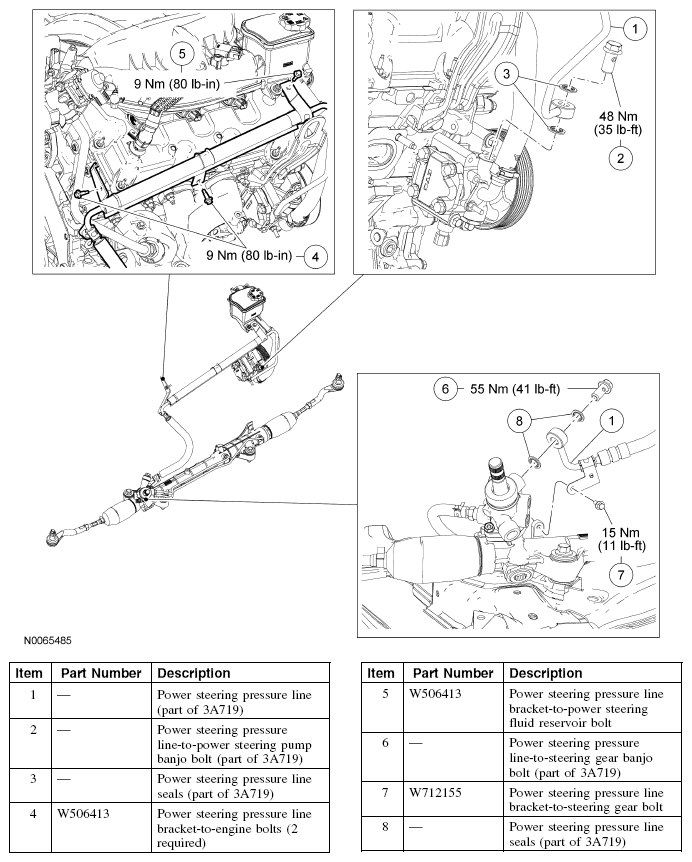

Fig 2: Identifying Power Steering Pump To Steering Gear Pressure Line Remove/Install Components (3.0L Engine)

Courtesy of FORD MOTOR CO.
