Transmission Fluid Cooler: Notes
WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft Continuously Variable Chain Type Transmission Fluid XT-7-QCFT | WSS-M2C933-A |
| Motorcraft Premium Automatic Transmission Fluid XT-8-QAW | WSS-M2C924-A |
CVT Transaxle Cooler
CAUTION:
The clamps on the end of the fluid cooler tubes are glued to the tubes and are not to be removed. The clamps are part of the fluid tubes, removing the clamps from the ends will damage the fluid cooler tubes.

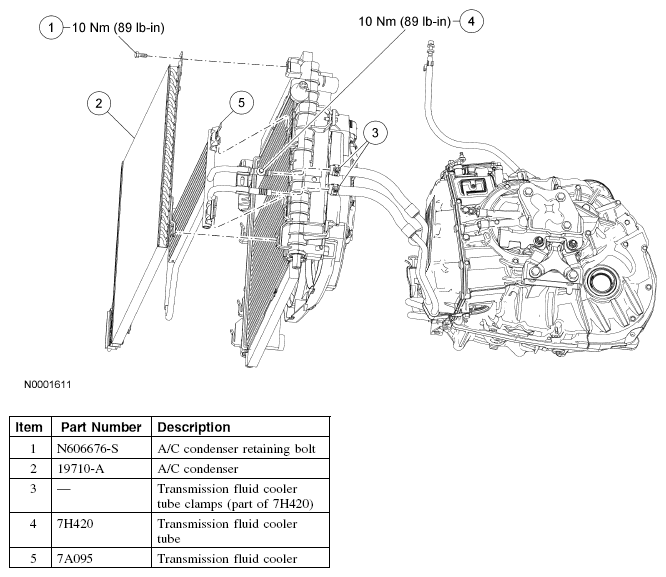

Fig 1: Transmission Fluid Cooler (CVT Transaxle Cooler) Replacement Components With Torque Specifications

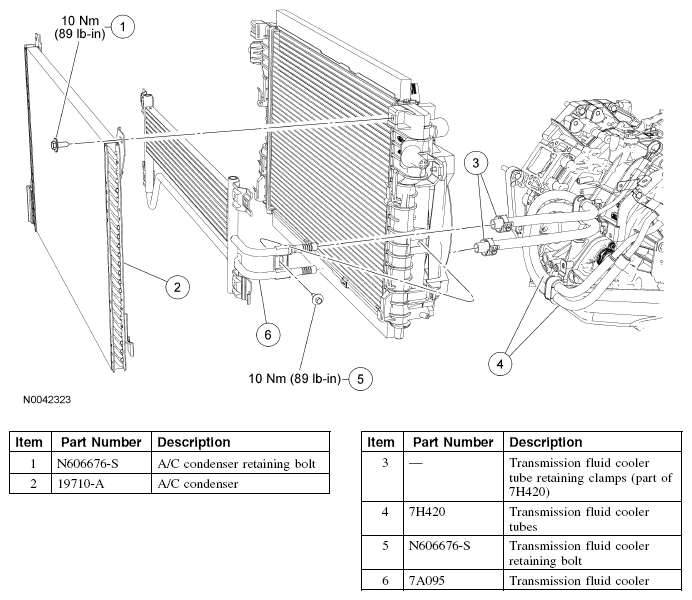

6-Speed Transaxle Cooler
CAUTION:
The clamps on the end of the fluid cooler tubes are glued to the tubes and are not to be removed. The clamps are part of the fluid tubes, removing the clamps from the ends will damage the fluid cooler tubes.
