Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

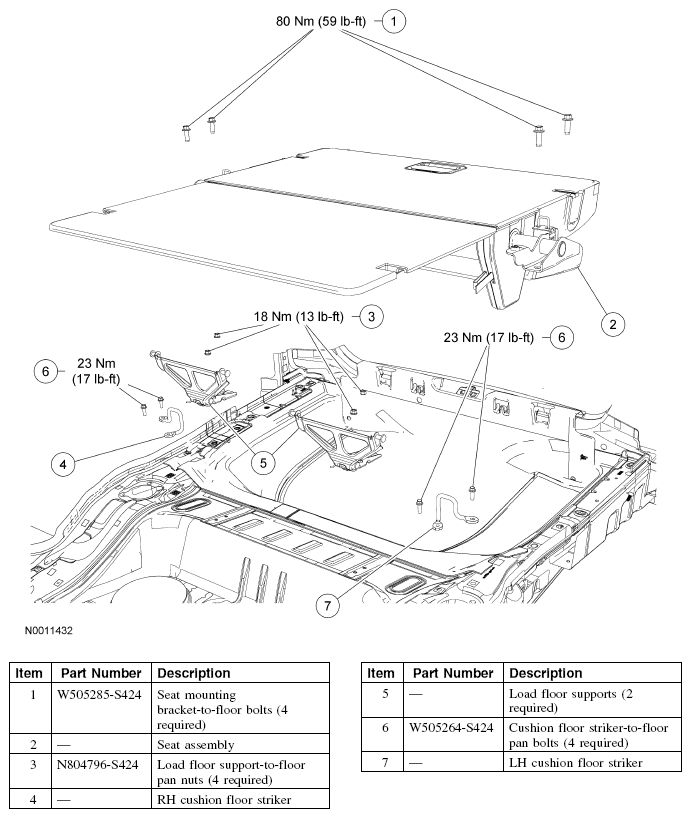

Fig 1: Seat - Third Row Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Remove the left and right side rear quarter trim panels. For additional information, refer to REMOVAL AND INSTALLATION .

NOTE: 50/50 seat shown, bench seat similar.

Fig 2: Locating Load Floor Support

Courtesy of FORD MOTOR CO.

Remove the 2 load floor supports (1 shown) from the load floor panel(s).
- Push the load floor support back and lift up on the load floor to disengage.
Remove the 4 bolts and remove the third row seat.
- To install, tighten to 80 N.m (59 lb-ft).
To install, reverse the removal procedure.

Make sure the safety belt buckles are accessible to the occupants after installation.
