Valve Cover - RH: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft Metal Surface Prep
ZC-31		 -
Silicone Gasket Remover
ZC-30		 -
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4

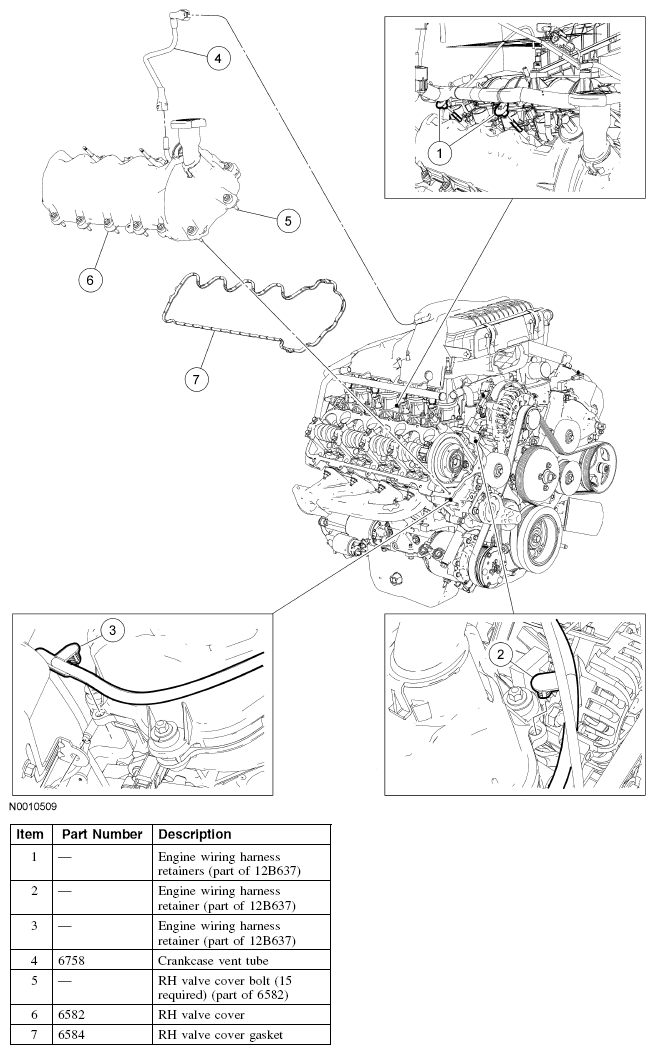

Fig 1: Identifying RH Valve Cover Components
G04646857Courtesy of FORD MOTOR CO.
