Section 449 (Engine - 5.4L (3V) - F250 & F350)
>>
In-Vehicle Repair
>>
Engine Lubrication Components - Exploded View
Engine Lubrication Components - Exploded View
WARNING:
This page is about a different car, the 2006 Ford Pickup and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

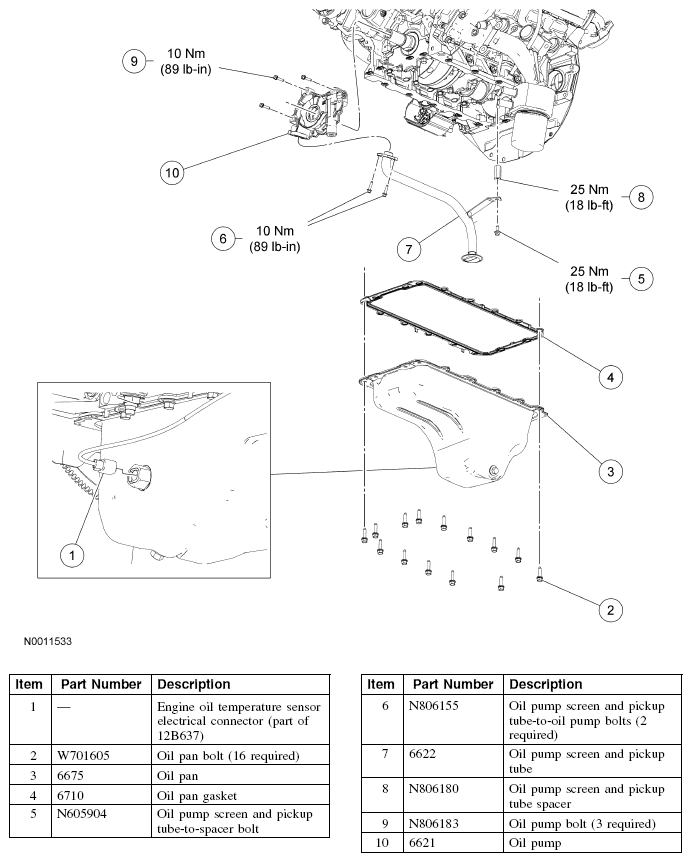

Fig 1: Exploded View Of Engine Lubrication Components
Courtesy of FORD MOTOR CO.
