Block Heater - 6.0L Diesel: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

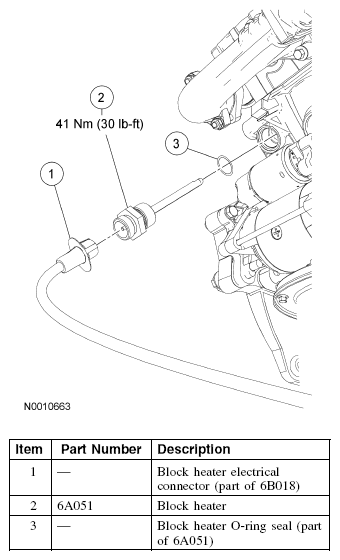

Fig 1: Identifying Block Heater Remove/Install Components - 6.0L Diesel
G04649147Courtesy of FORD MOTOR CO.
