Climate Control System: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Worldwide Diagnostic System (WDS) Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool
Courtesy of FORD MOTOR CO.	R-134a Manifold Gauge Set 176-R032A or equivalent
Courtesy of FORD MOTOR CO.	Connector, Refrigerant Pressure Line 412-093 (T94P-19623-E)
Courtesy of FORD MOTOR CO.	Set, A/C Fittings 412-DS028 (D93L-19703-B) or equivalent
Courtesy of FORD MOTOR CO.	Refrigerant Leak Detector 216-00001 or equivalent
Courtesy of FORD MOTOR CO.	73111 Automotive Meter 105-R0057 or equivalent
Courtesy of FORD MOTOR CO.	Vacuum Pump Kit 416-D002 (D95L-7559-A) or equivalent

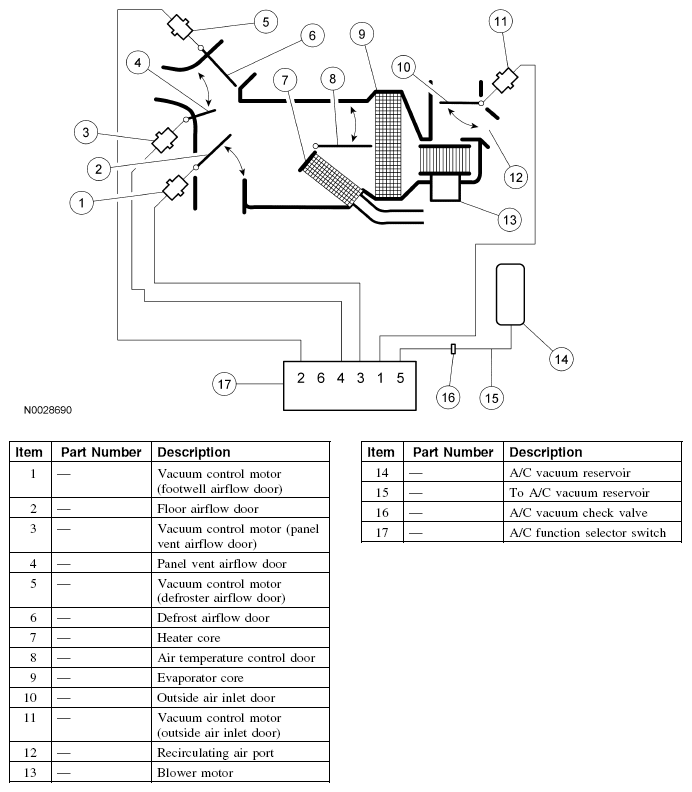

Fig 1: Climate Control System Vacuum Schematic Diagram

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Function Selector Switch Vacuum Connector Pinouts

Courtesy of FORD MOTOR CO.
