Side Impact Sensor - Second Row, C-Pillar: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

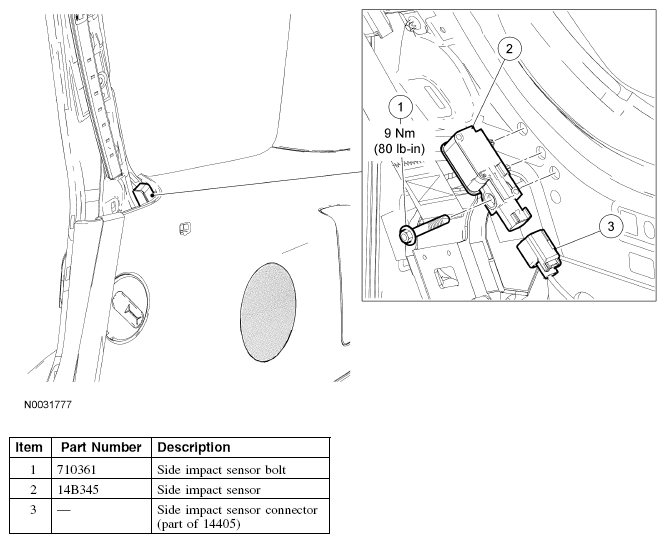

Fig 1: Side Impact Sensor Replacement Components -- Second Row, C-Pillar With Torque Specifications
G04622870Courtesy of FORD MOTOR CO.
