Halfshaft Seal: Installation

WARNING: This page is about a different car, the 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install the halfshaft oil seal.

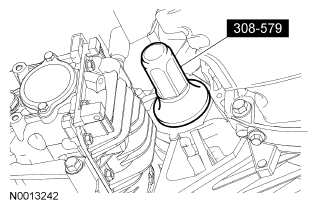

    Fig 1: Installing Halfshaft Oil Seal Using Special Tool
    G04620950Courtesy of FORD MOTOR CO.
    2. CAUTION: Make sure to use the seal protector when installing the RH intermediate shaft and the LH halfshaft. Failure to use the seal protector may result in transmission oil leaks.
  2. Install the RH intermediate shaft or LH halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
