Steering Gear - Hybrid: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL CHART

Tie-Rod End Remover
211-105 (T85M-3395-A)

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

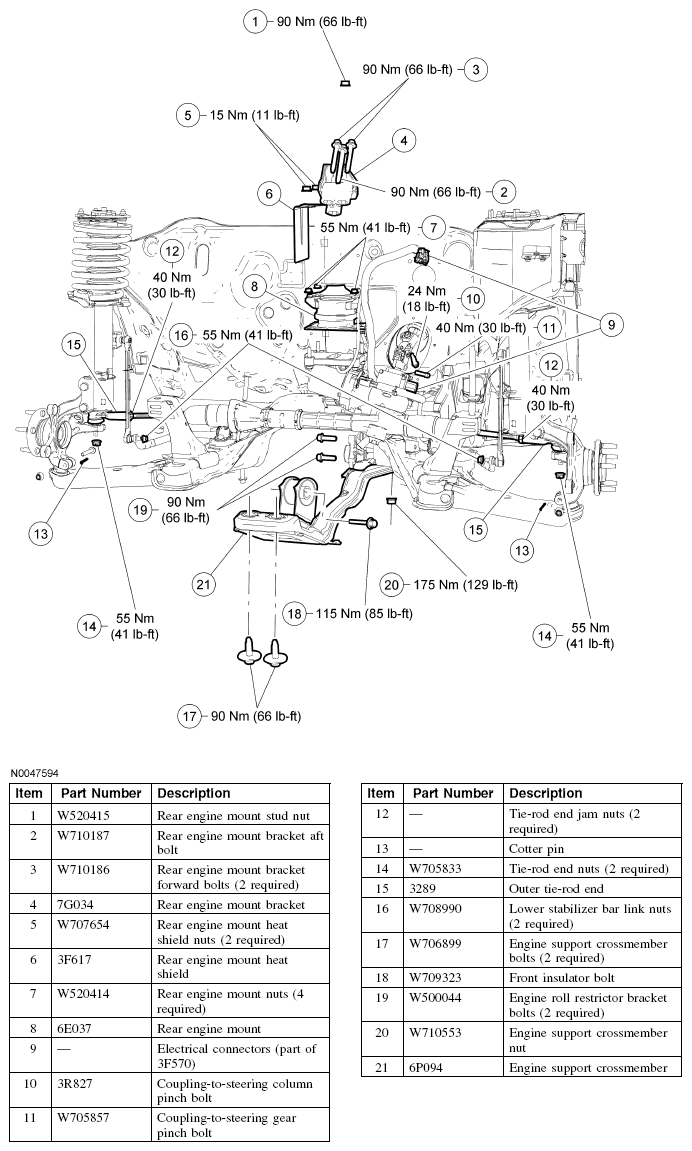

Fig 1: Steering Gear - Hybrid With Torque Specifications (1 Of 2)

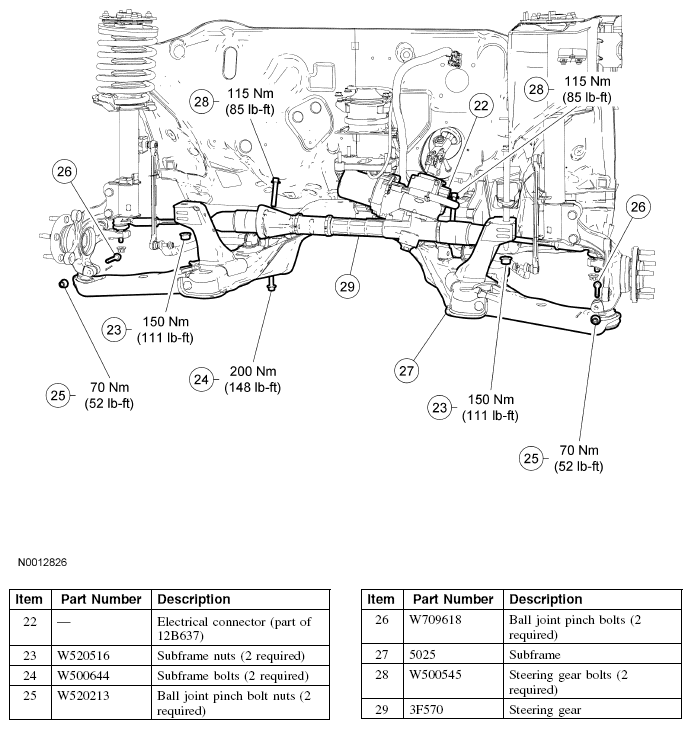

Fig 2: Steering Gear - Hybrid With Torque Specifications (2 Of 2)
