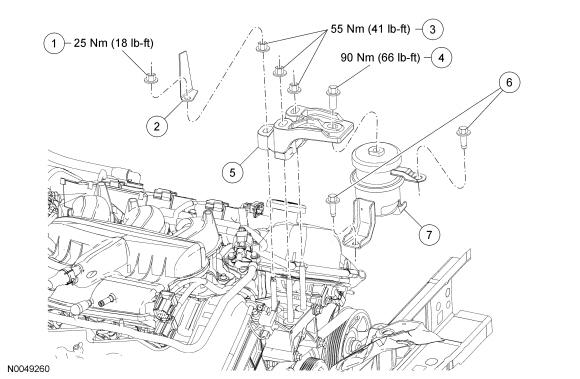

Engine Support Insulators: Notes
WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N621942-S-S | Power steering pressure (PSP) tube bracket nut |
| 2 | - | PSP tube bracket (part of 3A719) |
| 3 | N621942-S-S | Engine support insulator bracket nuts (3 required) |
| 4 | W709667-S-S | Engine support insulator bracket bolt |
| 5 | - | Engine support insulator bracket |
| 6 | W500233-S301-S301 | Engine support insulator bolts (3 required) (vehicles built through 10/2005) |
| 6 | W500233-S439-S439 | Engine support insulator bolts (3 required) (vehicles built after 10/2005) |
| 7 | 6068 | Engine support insulator |
