Removal and Installation

Inspect the pulley for paint marks in the web area near the hub. If there are 2 paint marks, discard the pulley. If there is no paint or one paint mark, use a paint pencil to mark the web area of the pulley near the hub.

WARNING: The electrical power to the air suspension system must be turned off prior to hoisting, jacking or towing an air suspension vehicle. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations.
1. Turn the air suspension service switch to the OFF position.
2. Remove the drive belt. For additional information, refer to ACCESSORY DRIVE .
WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .
3. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
CAUTION: Do not apply pressure on the power steering pump rotor shaft. Pressure will damage internal thrust areas of the power steering pump.
Installation of a new power steering pump pulley is necessary after being removed and installed 2 times.

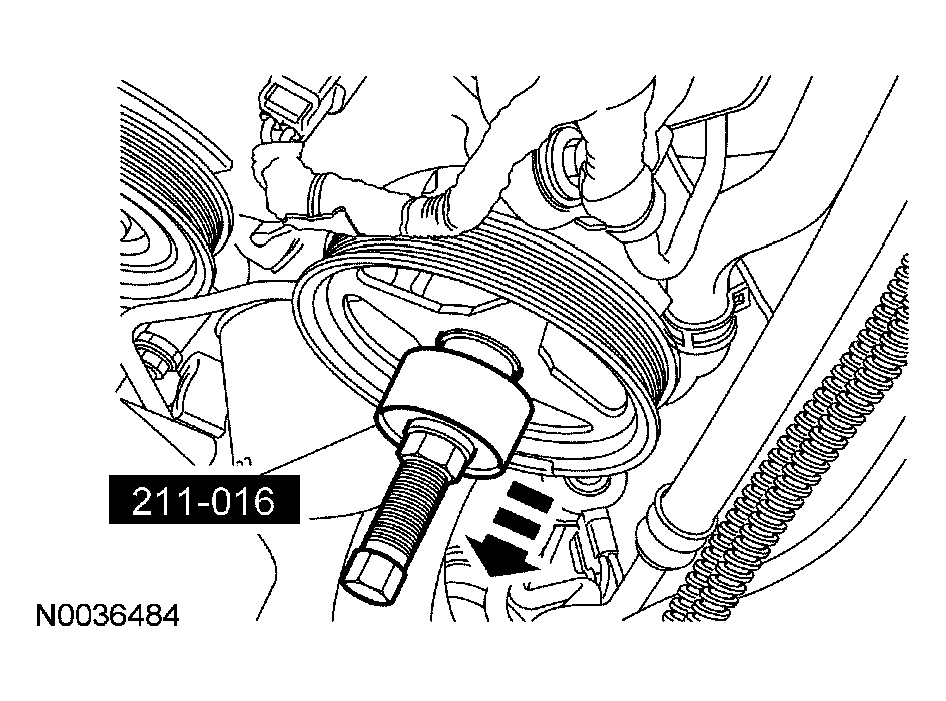

Fig 1: Removing Pulley
Courtesy of FORD MOTOR CO.
4. Using the special tool, remove the pulley.
5. To install, reverse the removal procedure.
   • Use the special tool to install the pulley.

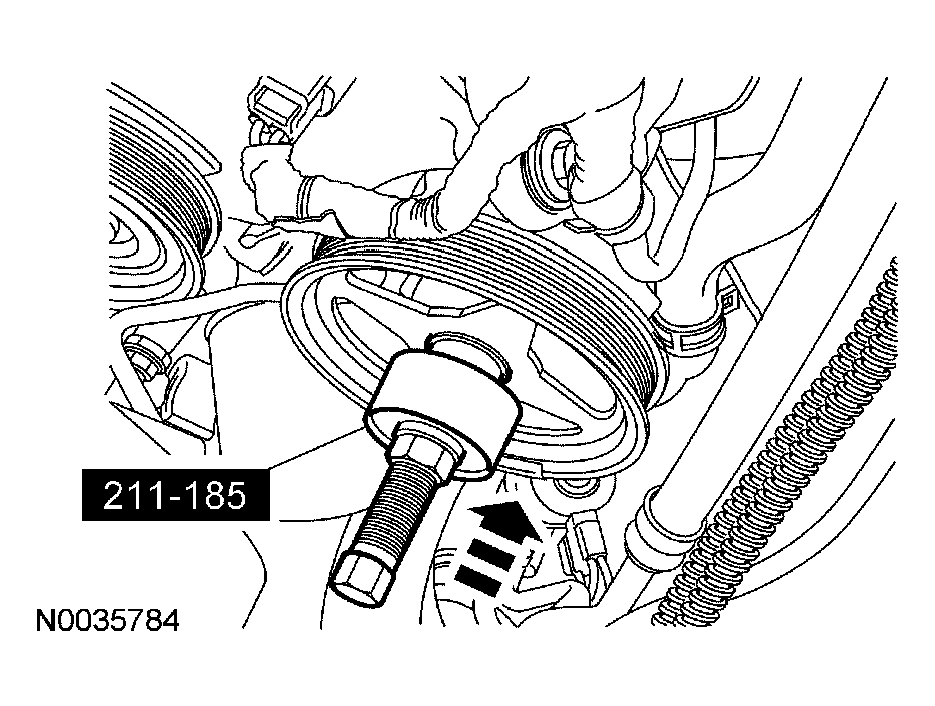

     Fig 2: Installing Pulley

     Courtesy of FORD MOTOR CO.
WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .
6. If equipped with fire suppression system, repower the system.
7. Turn the air suspension service switch to the ON position.
