This pinpoint test is intended to diagnose the following:

Integrated mass air flow (MAF)/intake air temperature (IAT) sensor (12B579).
Harness circuits IAT, VREF, and SIGRTN.
Powertrain control module (PCM) (12A650).

Voltage values calculated for VREF = 5 volts. These values can vary by 15% due to sensor and VREF variations.

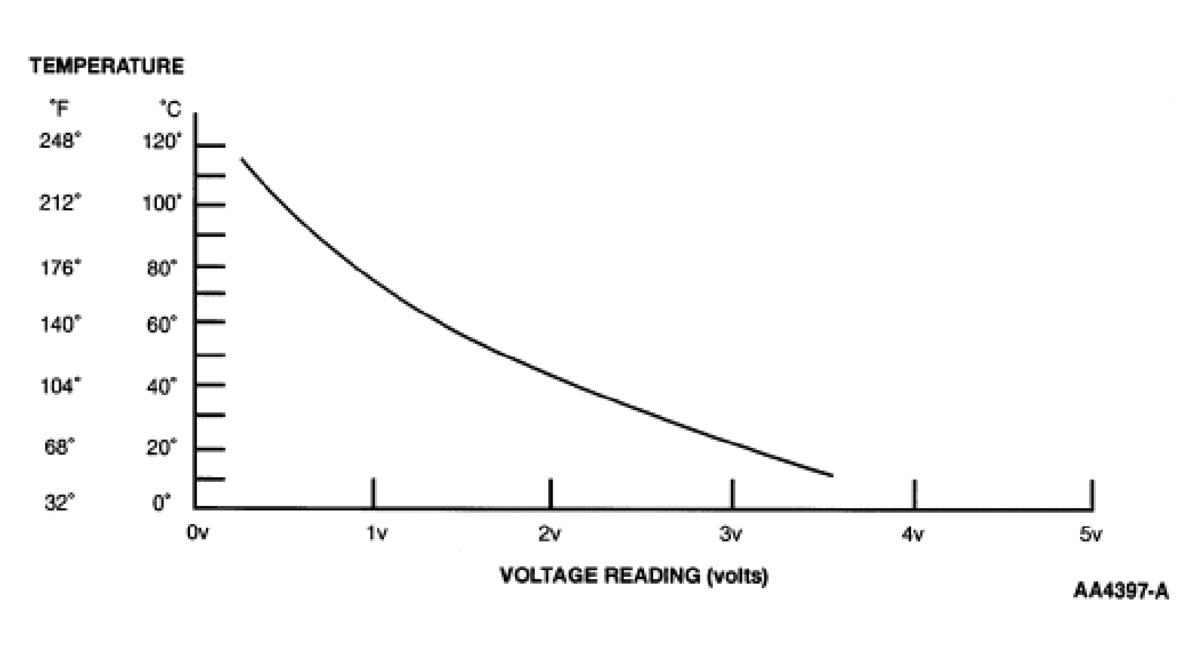

Fig 1: Temperature And Voltage Graph

Courtesy of FORD MOTOR CO.

TEMPERATURE SENSOR VOLTAGE AND RESISTANCE SPECIFICATIONS

Temperature		Temperature Sensor Values
°C	°F	Voltage	Resistance (K ohms)
120	248	0.28	1.18
110	230	0.36	1.55
100	212	0.47	2.07
90	194	0.61	2.80
80	176	0.80	3.84
70	158	1.05	5.37
60	140	1.37	7.70
50	122	1.77	10.97
40	104	2.23	16.15
30	86	2.74	24.27
20	68	3.26	37.30
10	50	3.73	58.75
0	32	4.14	95.85
-10	14	4.45	160.31

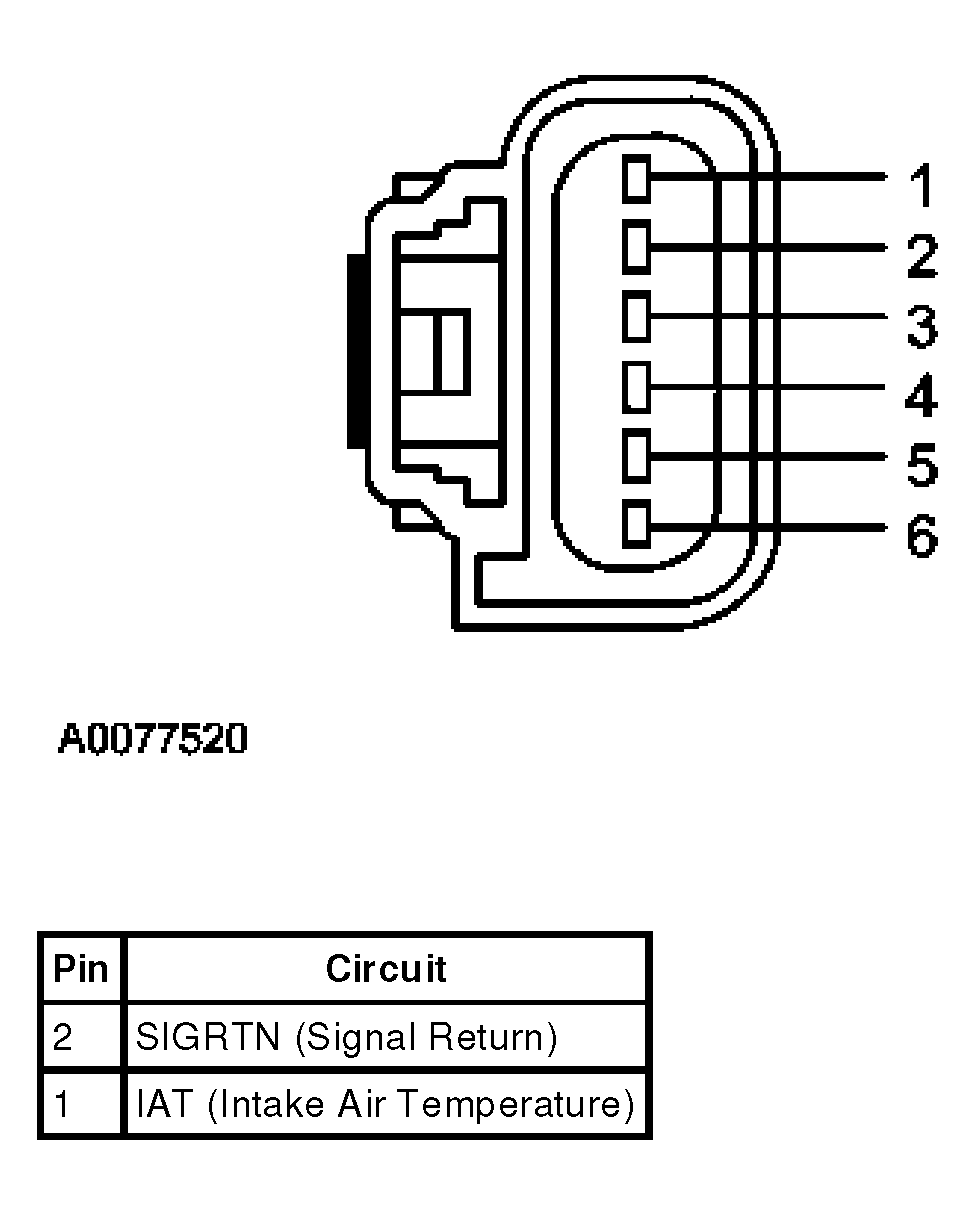

Fig 2: Identifying Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector

Courtesy of FORD MOTOR CO.

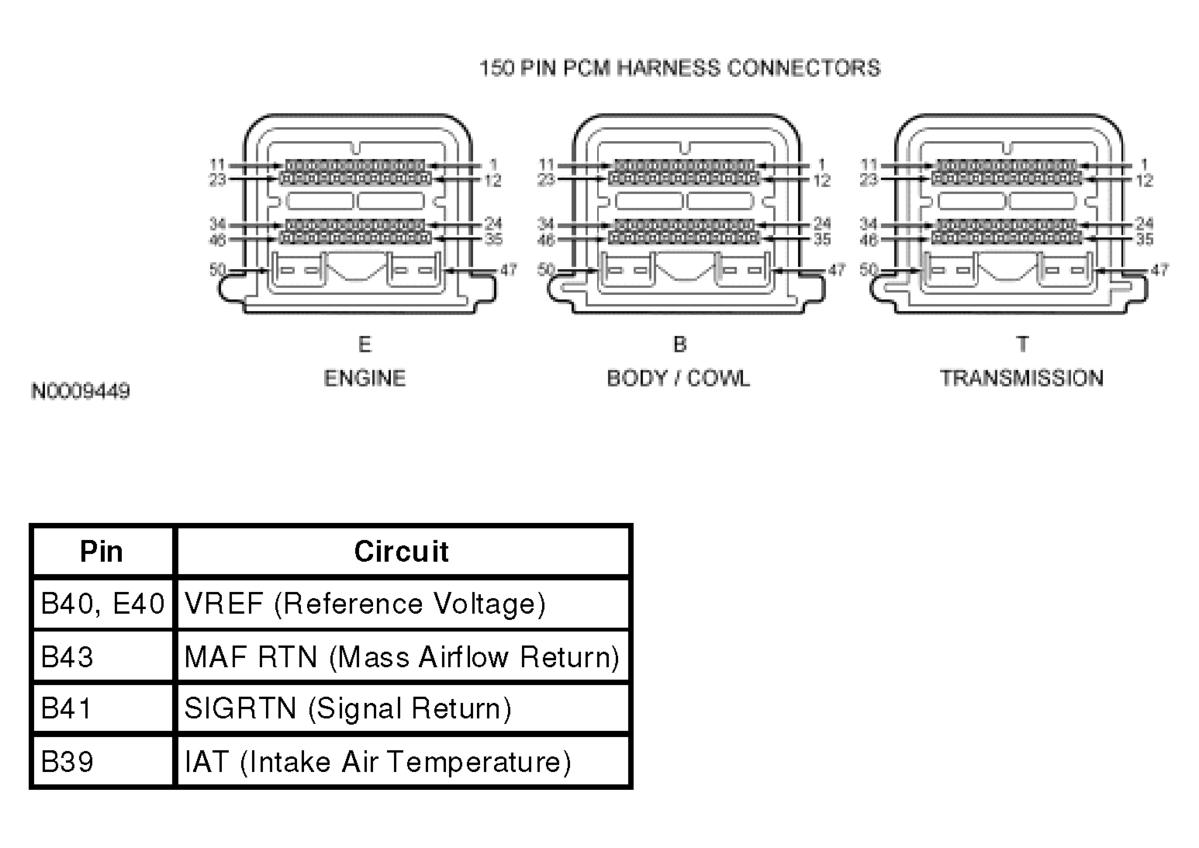

Fig 3: Identifying Powertrain Control Module (PCM) Connector

Courtesy of FORD MOTOR CO.
