Pinpoint Test Kn: Variable Speed Electric Cooling Fan: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2006 Mercury Mountaineer, 2006 Mercury Monterey, 2006 Mercury Montego, 2006 Mercury Milan, and 2006 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: CROWN VICTORIA POLICE INTERCEPTOR VEHICLES EQUIPPED WITH FIRE SUPPRESSION SYSTEM, REFER TO FIRE SUPPRESSION SYSTEM FOR IMPORTANT SAFETY WARNINGS . FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

This pinpoint test is intended to diagnose the following:

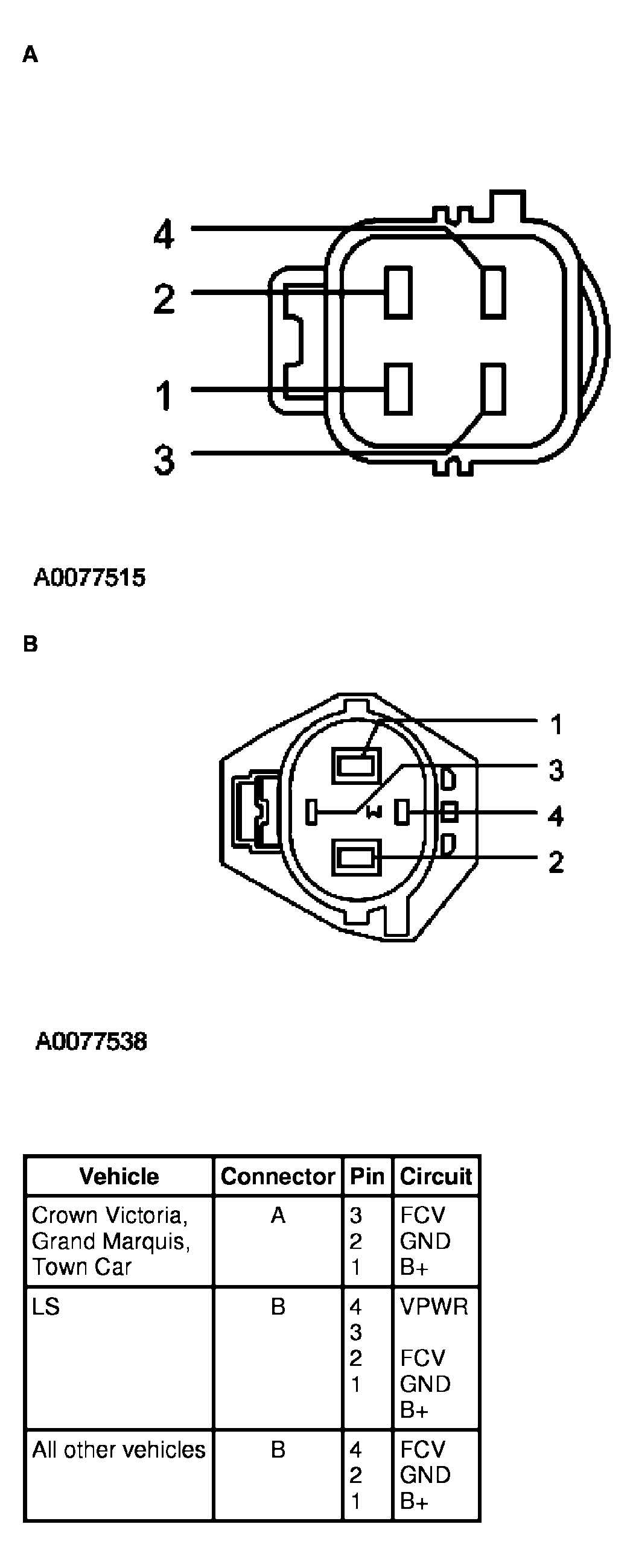

Fig 1: Cooling Fan (CF) Motor Connector
G04587267Courtesy of FORD MOTOR CO.
