Transaxle Cooling - Aisin AW21

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

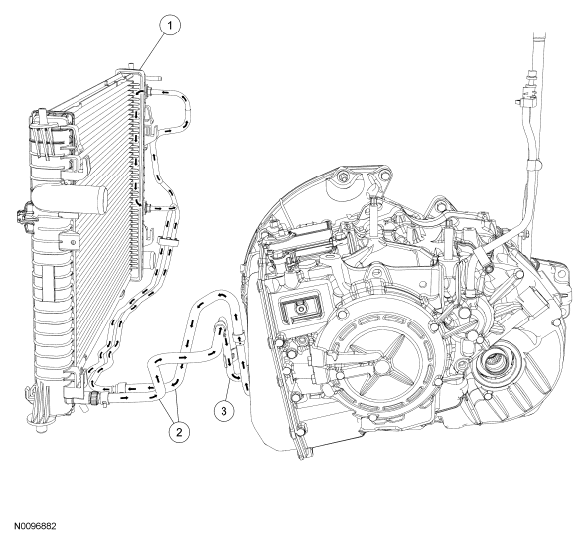

Fig 1: Transaxle Cooling Flow Diagram - Aisin AW21
G06275525Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 8005 Radiator
2 7H420 Transmission fluid cooler tube assembly
3 19710-A Transmission mounted fluid cooler tube
