Steering Column Wire Harness
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

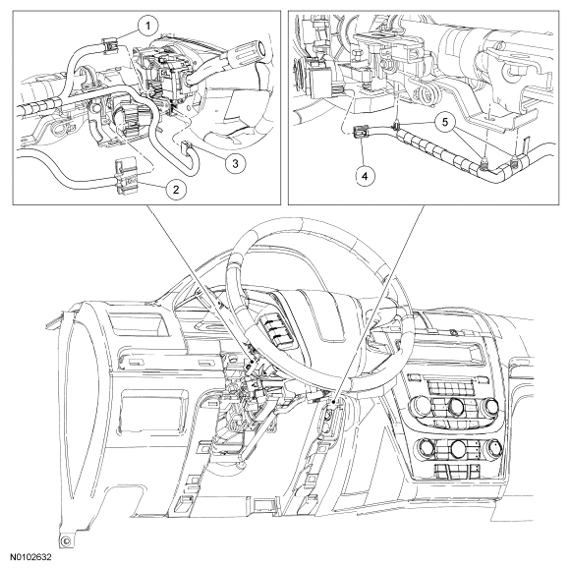

2.5L/3.0L shown in illustration, 3.5L similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Multifunction switch electrical connector (part of 14401) |
| 2 | - | Ignition switch electrical connector (part of 14401) |
| 3 | - | Clockspring electrical connector (part of 14401) |
| 4 | - | Passive Anti-Theft System (PATS) electrical connector (part of 14401) |
| 5 | - | Wiring harness retainers (3 required) (part of 14401) |
